KN-92 Phosphate

Alias:
Cat No.:V2802 Purity: ≥98%
KN-92 Phosphate, the phosphate salt of KN-92, is an inactive derivative of KN-93.
KN-92 Phosphate Chemical Structure CAS No.: 1135280-28-2
Product category: CaMK
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
500mg
Other Sizes

Other Forms of KN-92 Phosphate:

  • KN-92 Hydrochloride
  • KN-92
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

KN-92 Phosphate, the phosphate salt of KN-92, is an inactive derivative of KN-93. KN-92 is intended to be used as a control compound in studies designed to elucidate the antagonist activities of KN-93. KN-93 inhibits histamine-induced aminopyrine uptake in parietal cells (IC50 = 300 nM). KN-93 has been used to implicate roles for CaMKII in Ca2+-induced Ca2+ release in cardiac myocytes, constitutive phosphorylation of 5-lipoxygenase in 3T3 cells, and Ca2+-dependent activation of HIF-1α in colon cancer cell.

Biological Activity I Assay Protocols (From Reference)
ln Vitro
LX-2 cell growth is inhibited by KN-93 (5-50 μM; 24 hours), but KN-92 (5-50 μM; 24 hours) is ineffective in preventing cell growth[2]. KN-93, not KN-92, was found to decrease the expression of p53 and p21, according to an analysis of cell cycle regulator expression[2].
ln Vivo

Cell Assay
Cell Viability Assay[2]
Cell Types: Human hepatic stellate cells (LX-2)
Tested Concentrations: 5-50 μM
Incubation Duration: 24 hrs (hours)
Experimental Results: Ineffective in blocking cell growth.
Animal Protocol


References
[1]. Smyth JT, et al. Inhibition of the inositol trisphosphate receptor of mouse eggs and A7r5 cells by KN-93 via a mechanism unrelated to Ca2+/calmodulin-dependent protein kinase II antagonism. J Biol Chem. 2002;277(38):35061-35070.
[2]. An P, et al. KN-93, a specific inhibitor of CaMKII inhibits human hepatic stellate cell proliferation in vitro. World J Gastroenterol. 2007;13(9):1445-1448.
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C24H28CLN2O7PS
Molecular Weight
554.98
CAS #
1135280-28-2
SMILES
ClC1C=CC(=CC=1)/C=C/CN(C)CC1=CC=CC=C1NS(C1C=CC(=CC=1)OC)(=O)=O.P(=O)(O)(O)O
InChi Key
XRQHWVVDNMJDEQ-IPZCTEOASA-N
InChi Code
InChI=1S/C24H25ClN2O3S.H3O4P/c1-27(17-5-6-19-9-11-21(25)12-10-19)18-20-7-3-4-8-24(20)26-31(28,29)23-15-13-22(30-2)14-16-23;1-5(2,3)4/h3-16,26H,17-18H2,1-2H3;(H3,1,2,3,4)/b6-5+;
Chemical Name
(E)-N-(2-(((3-(4-chlorophenyl)allyl)(methyl)amino)methyl)phenyl)-4-methoxybenzenesulfonamide phosphate
Synonyms

KN-92 phosphate; KN-92; KN 92; KN92.

Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 25mg/mL
Water: N/A
Ethanol:N/A
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.8019 mL 9.0093 mL 18.0187 mL
5 mM 0.3604 mL 1.8019 mL 3.6037 mL
10 mM 0.1802 mL 0.9009 mL 1.8019 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • KN-92 Phosphate

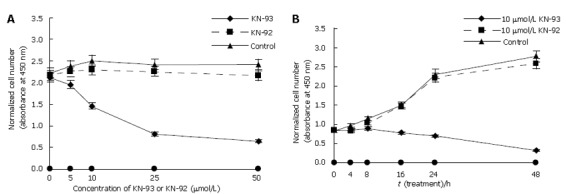

    WST-8 assay showing the effect of KN-93 and KN-92 on the growth of LX-2 cells after incubation for 24 h (A) and at the indicated time (B).World J Gastroenterol.2007 Mar 7;13(9):1445-8.
  • KN-92 Phosphate

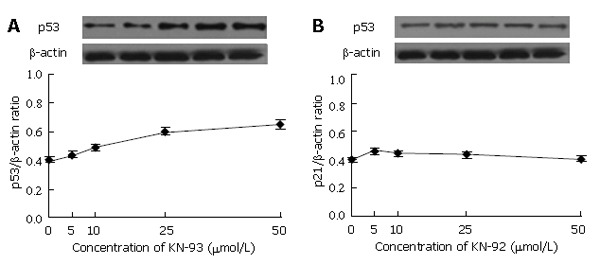

    Effects of KN-93 (A) and KN-92 (B) on expression of p53 in LX-2 cells.World J Gastroenterol.2007 Mar 7;13(9):1445-8.
  • KN-92 Phosphate

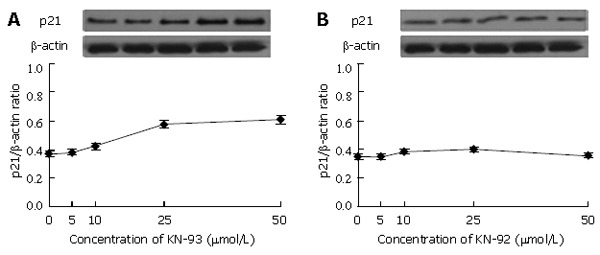

    Effects of KN-93 (A) and KN-92 (B) on expression of p21 in LX-2 cells.World J Gastroenterol.2007 Mar 7;13(9):1445-8.
