WYE125132 (WYE132)

Alias: WYE125132; WYE 125132; WYE-125132; WYE 132; WYE-132; WYE132
Cat No.:V0197 Purity: ≥98%
WYE-125132 (also known as WYE 132) is a novel, highly potent, selective and ATP-competitive inhibitor of mTOR (mammalian target of rapamycin) with potential antitumor activity.
WYE125132 (WYE132) Chemical Structure CAS No.: 1144068-46-1
Product category: mTOR
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
1mg
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

WYE-125132 (also known as WYE 132) is a novel, highly potent, selective and ATP-competitive inhibitor of mTOR (mammalian target of rapamycin) with potential antitumor activity. It inhibits mTOR with an IC50 of 0.19 nM; It exhibits high selectivity for mTOR over PI3K and inhibits mTOR with an IC50 of 0.19 nM.

Biological Activity I Assay Protocols (From Reference)
Targets
mTOR (IC50 = 0.19 nM); PI3Kα (IC50 = 1.179 μM); PI3Kδ (IC50 = 2.38 μM); hSMG1 (IC50 = 1.25 μM); mTORC1; mTORC2
ln Vitro
WYE-125132 exhibits high selectivity over a panel of 230 protein kinases as well as potent and ATP-competitive inhibition of recombinant mTOR kinase with an IC50 of 0.19 nM. [1] With an IC50 range of 2 nM (LNCap) to 380 nM (HTC116), WYE-125132 exhibits a significant anti-proliferative activity in vitro against a panel of tumor cell lines. In addition, WYE-125132 promotes the cell cycle, induces apoptosis, and inhibits the synthesis of proteins and cell growth. [1] WYE-125132 results in a significant reduction in the synthesis of pre-tRNALeu by 72%, 80%, and 53% in actively proliferating cells of MG63, MDA361, and HEK293, respectively by inhibiting mTORC1. In addition, WYE-125132 is discovered to cause Maf1 (a negative regulator of Pol III transcription) to dephosphorylate and accumulate in the nucleus. [2]
ln Vivo
WYE-125132 (5 mg/kg p.o.) produces significant antitumor activity and causes dose-dependent tumor growth delay in the PI3K/mTOR- and HER2-hyperactive MDA361 tumor model. In addition, WYE-125132 also shows potent antitumor efficacy in the PTEN-null glioma U87MG, non-small cell lung cancer H1975 and A549 models.[1]
Enzyme Assay
mTOR enzyme assays via dissociation-enhanced lanthanide fluorescent immunoassay (DELFIA), ATP matrix assays, and mTOR immune-complex kinase assays are performed as follows. Anti-FRAP/TOR (N-19) immunoprecipitates the endogenous TOR in LNCap cell lysate. 1 mL of lysis buffer is added to 1 mg of cell lysate, 4 g of antibody, and protein-G/A agarose.
Cell Assay
Cell lines of MDA-MB-361, MDA-MB-231, MDA-MB-468, BT549, LNCap, A549, H1975, H157, H460, U87MG, A498, 786-O, HCT116, MG63, Rat1, HEK293, and HeLa are obtained from the American Type Culture Collection. The following describes cell growth assays and IC50 calculation. Cells are plated in 96-well culture plates at a density of 1000–3000 cells per well for a period of 24 hours and are then given various doses of WYE–125132 or DMSO to see how well the tumor cells grow. Three days later, the viability of the cells is assessed using the MTS assay method, which uses an assay kit and the kit assay procedure. Each treatment's impact is quantified as a percentage of control growth in comparison to cells that were grown in the same culture plate but had received DMSO. For the purpose of calculating IC50 values, inhibitor dose response curves are plotted.
Animal Protocol
Mice: For mTOR biomarker studies, different tumors (400 mm3) grown subcutaneously in female nude mice are dosed with WYE-125132, a drug formulated with 5% ethanol, 2% Tween 80, and 5% polyethylene glycol-400, by a single intravenous or oral injection. Immunoblotting is done after preparing tumor lysates. Nude mice with the tumors U87MG, MDA361, H1975, A549, A498, or 786-O are staged and randomized into treatment groups (n=10) for efficacy studies. Mice receive oral doses of either the vehicle or WYE-125132 on a daily basis (5 days on, 2 days off) for up to four cycles. Temsirolimus/CCI-779 is administered intravenously once a week in the form of WYE-132. Bevacizumab is prepared in PBS and administered intravenously according to the clinical regimen (200 g/mouse; once per week). Monitoring and analysis of tumor growth is done.
References

[1]. Cancer Res. 2010 Jan 15;70(2):621-31.

[2]. J Biol Chem. 2010 May 14;285(20):15380-15392.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C27H33N7O4
Molecular Weight
519.595425367355
Exact Mass
519.2594
Elemental Analysis
C, 62.41; H, 6.40; N, 18.87; O, 12.32
CAS #
1144068-46-1
Related CAS #
1144068-46-1
Appearance
White solid powder
SMILES
CNC(=O)NC1=CC=C(C=C1)C2=NC3=C(C=NN3C4CCC5(CC4)OCCO5)C(=N2)N6CC7CCC(C6)O7
InChi Key
QLHHRYZMBGPBJG-UHFFFAOYSA-N
InChi Code
InChI=1S/C27H33N7O4/c1-28-26(35)30-18-4-2-17(3-5-18)23-31-24(33-15-20-6-7-21(16-33)38-20)22-14-29-34(25(22)32-23)19-8-10-27(11-9-19)36-12-13-37-27/h2-5,14,19-21H,6-13,15-16H2,1H3,(H2,28,30,35)
Chemical Name
1-[4-[1-(1,4-dioxaspiro[4.5]decan-8-yl)-4-(8-oxa-3-azabicyclo[3.2.1]octan-3-yl)pyrazolo[3,4-d]pyrimidin-6-yl]phenyl]-3-methylurea
Synonyms
WYE125132; WYE 125132; WYE-125132; WYE 132; WYE-132; WYE132
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~104 mg/mL (~200.2 mM)
Water: <1 mg/mL
Ethanol: <1 mg/mL
Solubility (In Vivo)
30% PEG400+0.5% Tween80+5% propylene glycol: 30mg/mL (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.9246 mL 9.6228 mL 19.2456 mL
5 mM 0.3849 mL 1.9246 mL 3.8491 mL
10 mM 0.1925 mL 0.9623 mL 1.9246 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • WYE-125132 (WYE-132)

    WYE-132 is a potent and selective inhibitor of mTORC1 and mTORC2. Cancer Res. 2010, 70(2), 621-631.

  • WYE-125132 (WYE-132)

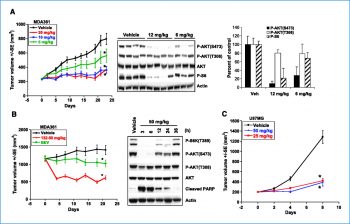

    WYE-132 inhibits mTOR signaling and tumor growth in PI3K/AKT/mTOR-hyperactivated tumor models in vivo.

  • WYE-125132 (WYE-132)

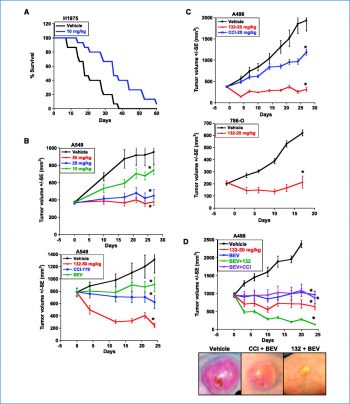

    WYE-132 antitumor efficacy in lung and renal tumor models.
