    Voxtalisib Analog (SAR245409 Analog, XL765 Analog)
    Voxtalisib Analog (SAR245409 Analog, XL765 Analog)

    Market Price:

    This product is for research use only, not for human use. We do not sell to patients.
    Number: - + Pieces(InventoryPieces)
    InvivoChem Cat #: V0119
    CAS #: 1349796-36-6 Purity ≥98%

    Description: Voxtalisib analogue (also known as PI3K-IN-1, SAR-245409 Analog, XL-765 Analog), a Voxtalisib derivative, is a novel, potent and orally bioavailable dual inhibitor of mTOR/PI3K with potential anticancer activity.

    References: Mol Cancer Ther. 2012 Aug;11(8):1758-69.

    Related CAS: 934493-76-2 (Voxtalisib)

    Customer Validation
    Official Supplier of
    • VE
    • OF
    • YALE
    • hhmi
    • 香港大学
    Related Products
    Publications Citing InvivoChem Products
    • Physicochemical and Storage Information
    • Protocol
    • Quality Control Documentation
    • Related Biological Data
    • Customer Review

    Molecular Weight (MW)




    CAS No.

    1349796-36-6 ((PI3K-IN-1, Voxtalisib analogue);


    -20℃ for 3 years in powder form

    -80℃ for 2 years in solvent

    Solubility (In vitro)

    DMSO: 12 mg/mL (20.0 mM)

    Water:<1 mg/mL

    Ethanol: <1 mg/mL

    Solubility (In vivo)

    30% PEG400+0.5% Tween80+5% Propylene glycol: 30 mg/mL

    Chemical Name



    SAR245409 analogue; SAR245409 analogue; SAR 245409 analogue; XL765 analogue; XL 765 analogue; XL-765 analogue; Voxtalisib analogue

    SMILES Code

    O=C(NC1=CC=C(S(=O)(NC2=NC3=CC=CC=C3N=C2NC4=CC(OC)=CC(OC)=C4)=O)C=C1)C5=CC=C(C)C (OC)=C5

    • Molarity Calculator
    • Dilution Calculator
    • The molarity calculator equation

      Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

      • Mass
      • Concentration
      • Volume
      • Molecular Weight *
      • =
      • ×
      • ×
    • The dilution calculator equation

      Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

      This equation is commonly abbreviated as: C1V1 = C2V2

      • Concentration (start)
      • ×
      • Volume (start)
      • =
      • Concentration (final)
      • ×
      • Volume (final)
      • ×
      • =
      • ×
      • C1
      • V1
      • C2
      • V2

    In Vitro

    In Vitro Activity: Voxtalisib (SAR245409, XL765) displays potent inhibitory activity against class I PI3K isoforms p110α, p110β, p110δ, and p120γ, with IC50s of 39, 110, 43, and 9 nM, respectively. The IC50 value for inhibition of PI3Kα by SAR245409 is determined at various concentrations of ATP, revealing SAR245409 to be an ATP-competitive inhibitor with an equilibrium inhibition constant (Ki) value of 13 nM. SAR245409 also inhibits mTOR (IC50s of 160 and 910 nM for mTORC1 and mTORC2, respectively) in an immune-complex kinase assay and the PI3K-related kinase DNA-PK (IC50 value of 150 nM). In contrast, SAR245409 has relatively weak inhibitory activity toward the class III PI3K vacuolar sorting protein 34 (VPS34; IC50 value of ~9.1 μM). Consistent with its inhibitory activity against purified PI3K proteins, SAR245409 inhibits EGF-induced PIP3 production in PC-3 and MCF7 cells with IC50s of 290 and 170 nM, respectively. The ability of SAR245409 to inhibit phosphorylation of key signaling proteins downstream of PI3K is examined by assessing its effects on EGF-stimulated phosphorylation of AKT and on nonstimulated phosphorylation of S6 in PC-3 cells by cell-based ELISA. SAR245409 inhibits these activities with IC50s of 250 and 120 nM, respectively. In MCF7 and PC-3 cells, SAR245409 inhibits proliferation (monitored by BrdUrd incorporation) with IC50s of 1,070 and 1,840 nM, respectively. To further characterize the effects of SAR245409 on tumor cell growth, an assay monitoring the anchorage-independent growth of PC-3 and MCF7 cells in soft agar over a 14-day period is used. SAR245409 inhibits colony growth with an IC50 value of 270 nM in PC-3 cells and 230 nM in MCF7 cells


    Kinase Assay: Kinase activity for PI3K isoforms is measured as the percentage of ATP consumed following the kinase reaction using luciferase-luciferin-coupled chemiluminescence, with ATP concentrations approximately equal to the Km for each respective kinase. Kinase reactions are initiated by combining test compounds, ATP and kinase in a 20 μL volume. PI3Kα, PI3Kβ, PI3Kγ, and PI3Kδ final enzyme concentrations are 0.5, 8, 20, and 2 nM, respectively. A similar assay format is used for DNA-PK (DNA protein kinase) and VPS34. VPS34 assay buffer contains 20 mM Tris-HCl, pH 7.5, 3.5 mM MnCl2, 100 mM NaCl, 1 mM DTT, and 0.01% cholamidopropyldimethylammonio propanesulfonate (CHAPS). Of note, 0.5 μL DMSO containing varying concentrations of the test compound is mixed with 10 μL enzyme solution (2× concentration). Kinase reactions are initiated by the addition of 10 μL of liver phosphatidylinositol and ATP solution (2× concentration). Assay concentrations for VPS34, ATP, and phosphatidylinositol are 40 nM, 1 μM, and 5 μM, respectively


    Cell Assay: Cells (Pancreatic cancer cell lines (HcG25, Panc89, PA-TU8988T, Panc2.13, MiaPaCa2, Panc10.05, Panc8.13, BxPC-3, etc.) are treated with XL765 24 hours after plating and harvested for apoptosis or autophagy assays at 24, 48, or 72 hours after XL765 treatment. Apoptosis is determined by total percentage of annexin V-positive cells by fluorescence-activated cell sorting (FACS). Acidic vesicular organelles (AVOs) are detected in XL765-treated cells by vital staining with acridine orange. The degree of AVO formation is expressed as fold increase of acridine orange fluorescence intensity (FL3) in XL765-treated cells versus control cells.

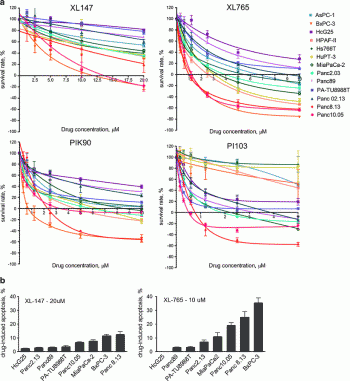

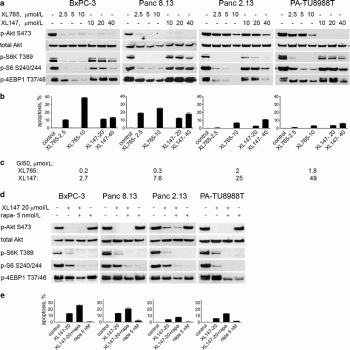

    XL765 is active against class I PI3K (IC50 = 39, 113, 9 and 43 nM for p110α, β, γ and δ, respectively). XL765 also inhibits DNA-PK (IC50 = 150 nM) and mTOR (IC50 = 157 nM) but not XL-147 which shows IC50 values of > 15 μM. XL765 treatment results in decreased cell viability in 13 PDA cell lines in a dose-dependent manner. XL765, a dual-target PI3K/mTOR inhibitor, inhibits cell growth and apoptosis in many more cell lines and at lower concentrations as compared to the PI3K-selective inhibitors XL147 and PIK90. The effect can be recapitulated by using combinations of single-targeted compounds. XL765 significantly reduces phosphorylation of the mTOR targets S6, S6K, and 4EBP1, which is associated with greater apoptosis induction rather than to PI3K inhibition alone. XL765 treatment causes accumulation of autophagosomes in MIAPaCa-2 cells, and results in significant dose-dependent AVO induction and LC3-II stimulation in MIAPaCa-2 cells stably expressing a LC3-GFP construct.

    In Vivo

    The combination of XL765 (30 mg/kg) with chloroquine (50 mg/kg) results in significant inhibition of BxPC-3 xenograft growth in mice models, while XL765 alone at the same dose has no inhibitory effect. Oral administration of XL765 results in greater than 12-fold reduction in median tumor bioluminescence compared to control and improvement in median survival in nude mice implanted intracranially with GBM 39-luc cells. XL765 in combination with temozolomide (TMZ) yields a 140-fold reduction in median bioluminescence with a trend toward improvement in median survival compared with TMZ alone.

    Animal model

    Female Nu/Nu mice inoculated s.c. with BxPC-3 cells

    Formulation & Dosage

    Dissolved in water/10 mM HCl; 30mg/kg; oral


    [1] Garcia-Echeverria C, et al. Oncogene, 2008, 27(41), 5511-5526.[2] Mirzoeva OK, et al. J Mol Med, 2011, 89(9), 877-889.

    These protocols are for reference only. InvivoChem does not independently validate these methods.

    Voxtalisib (SAR245409, XL765) Analogue

    Voxtalisib (SAR245409, XL765) Analogue

    J Mol Med, 2011, 89(9), 877-889.

    Voxtalisib (SAR245409, XL765) Analogue
