Purity: ≥98%
Targets |
Ferroptosis ; p38α (IC50 = 50 nM); p38β (IC50 = 100 nM)
|
---|---|
ln Vitro |
SB 202190 significantly inhibits both basal and anti-Fas antibody-induced MAPKAPK 2 activity in a dose-dependent manner. When expressed, bcl-2 can stop the activation of CPP32-like caspases, which are required to cause cell death in Jurkat and HeLa cells when SB202190 is used alone. p38α is a positive regulator of p38β but a negative regulator of SB202190-induced apoptosis. [2] The UVB-induced COX-2 mRNA and protein expression in HaCaT cells are both markedly and strongly inhibited by SB 202190. [3] In renal tubular cells (normal rat kidney-52E), SB 202190 treatment inhibits the expression of genes that are profibrotic (procollagen-Ialpha1) and proinflammatory (monocyte chemoattractant protein-1) when induced by transforming growth factor (TGF)-beta1.[4] In A549 cells, treatment with SB 202190 results in the phosphorylation of JNK in a dose- and time-dependent manner, as well as the phosphorylation of the transcription factor ATF-2 and an increase in AP-1 DNA binding. [6] THP-1 and MV4-11 cell growth is accelerated by SB 202190 treatment. The fact that SB 202190 increases c-Raf and ERK phosphorylation suggests that the Ras-Raf-MEK-Mitogen-Activated Protein Kinase (MAPK) pathway activation is responsible for the leukemia cell growth that is brought on by SB 202190. [7]
|
ln Vivo |
In the passive transfer mouse model, administration of SB202190, which inhibits p38, prevents PV IgG-induced blister formation.[5] Treatment with SB202190 results in a statistically significant survival advantage over control in the endotoxin model of sepsis.[8]
SB202190 and SN-50 resulted in significant survival benefit in the lipopolysaccharide model (P = 0.0006) but not bacterial or CLP models (P = 0.9 and 0.3, respectively). SB-202190 and SN-50, in combination with antibiotic, resulted in a significant survival benefit in the CLP model (P = 0.0001 and 0.006, respectively). Circulating levels of both tumor necrosis factor-alpha and interleukin-6 were significantly reduced at 2 h (P = 0.047 and 0.036, respectively) and Western blot demonstrated down-regulation of p38 kinase 2 h after CLP in animals treated with p38MAPK and SN-50 inhibitors in combination with antibiotics. Conclusions: We have demonstrated that p-38 and NF-kappaB inhibition improve survival in endotoxin shock, whereas the survival benefit in polymicrobial sepsis requires coexistent antibiotic treatment. Vascular dementia (VaD) is a common age-related neurodegenerative disease resulting from chronic hypoxia. In the present study, we examined the protective effects of p38 MAPK inhibitor SB202190 against hippocampal apoptosis and spatial learning and memory deficits in a chronic hypoperfusion rat model of VaD established by permanent bilateral carotid occlusion (2-VO). Sixty rats were randomly divided into sham-operated, VaD model, and VaD plus SB202190 groups (n = 20/group). After sham/2-VO surgery, rats were administered 0.1% DMSO (sham-operated and VaD groups) or SB202190 by intracerebroventricular injection. One week after inhibitor/vehicle treatment, hippocampal p38 MAPK phosphorylation was higher in the model group than in the SB202190 group (P < 0.01). Compared to the model group, the SB202190 group exhibited significantly shorter escape latencies in the Morris water maze hidden platform trials (P < 0.01) and longer times in the original platform quadrant during probe trials (P < 0.01). The SB202190 group also showed significantly reduced neuronal apoptosis in the hippocampus compared to VaD model rats (P < 0.01) as well as higher (antiapoptotic) Bcl-2 expression and lower (proapoptotic) caspase-3 expression (P < 0.01 for both). In conclusion, blockade of the p38 MAPK signaling pathway by SB202190 following permanent 2-OV reduced apoptosis of hippocampal neurons and rescued spatial learning and memory deficits[12]. |
Enzyme Assay |
The p38α and p38β are measured in 25 mM Tris-HCl, pH 7.5, with 0.1 mM EGTA and 0.33 mg/mL of myelin basic protein as the substrate. When using [γ-33P]ATP, assays can be run manually for 10 minutes at 30 °C in 50 L incubations or automatically with a Biomek 2000 Laboratory Automation Workstation in a 96-well format for 40 minutes at room temperature in 25 L incubations. Magnesium acetate and ATP have concentrations of 10 and 0.1 mM, respectively. MgATP is used to start every assay. To end a manual assay, aliquots of the incubation are spotted on phosphocellulose paper and then submerged in 50 mM phosphoric acid. Robotic assays are ended by adding 5 μL of 0.5 M phosphoric acid, followed by the spotting of aliquots onto P30 filter mats. All papers are then cleaned four times in 50 mM phosphoric acid to remove ATP, once in acetone (for manual incubations) or methanol (for robotic incubations), dried, and radioactivity is counted.
Protein Kinase Assays[2] MAPKAPK 2 assays were performed as described previously. Briefly, Jurkat cells were serum-starved for 24 h and then incubated with or without the specific p38 inhibitor SB202190 for 30 min prior to treatment with anti-Fas mAb (100 ng/ml) for 2 h or left alone as indicated in the figure legends. The cells were harvested in lysis buffer and clarified by centrifugation. Endogenous MAPKAPK 2 was immunoprecipitated with anti-MAPKAPK 2 polyclonal antibody for 3 h at 4 °C. The activity of the immune complex was assayed at 30 °C for 30 min in 30 μl of kinase buffer in the presence of 1 μm ATP/10 μCi [γ-32P]ATP (10 Ci/mmol) with GST-hsp27 as a substrate. The reactions were terminated with Laemmli sample buffer. The proteins were resolved by 13% SDS-polyacrylamide gel electrophoresis followed by autoradiography. The phosphorylated proteins were quantitated by a PhosphorImager. Caspase Activity Assays[2] Jurkat/neo or Jurkat/bcl-2 cells (106 cells) were treated with or without SB202190 (50 μm), PD098059 (50 μm) in the presence or absence of caspase inhibitor benzyloxycarbonyl-Val-Ala-Asp (zVAD)-fluoromethylketone for 24 h. The cells were then harvested in lysis buffer (25 mm Hepes, pH 7.4, 0.25% Nonidet P-40, 10 μg/ml leupeptin, 10 μg/ml aprotinin, 5 mm EDTA, 2 mm dithiothreitol, and 10 mm digitonin). The lysates were clarified by centrifugation, and the supernatants were used for caspase assays. The caspase activity was measured in a reaction mixture containing 20 μg of cell extracts, 20 μm fluoregenic peptide acetyl-Asp-Glu-Val-Asp-aminomethylcoumarin (DEVD-AMC) as described. Fluorescent AMC product formation was measured at excitation 360 nm, emission 460 nm using a Cytofluor II fluorescent plate reader. |
Cell Assay |
Serum-starved cells are treated for 24 hours with various concentrations of SB 202190. Flow cytometry analysis is done after either a trypan blue exclusion or a propidium iodide exclusion is used to determine the viability of the cells. H33258 staining is used to see the apoptotic nuclei.
The roles of p38 MAP kinases and ERK in UVB induced cox-2 gene expression were studied in a human keratinocyte cell line, HaCaT. UVB significantly increased cox-2 gene expression at both protein and mRNA levels. As we reported previously, p38 and ERK were significantly activated after UVB irradiation in HaCaT cells. In addition, treating the cells with p38 inhibitor SB202190 or MEK inhibitor PD98059 specifically inhibited UVB induced p38 or ERK activation, respectively. In this study, we further examined the roles of p38 and ERK in UVB induced cox-2 gene expression in HaCaT cells. We found that SB202190 strongly inhibited UVB induced COX-2 protein expression at different time points and various UVB doses. Furthermore, SB202190 markedly inhibited UVB induced cox-2 mRNA. Our data indicated that ERK did not play a role in UVB induced cox-2 gene expression in human keratinocytes since suppression of ERK did not significantly alter UVB induced increase of COX-2 protein and mRNA. These results suggested, for the first time, that activation of p38 is required for UVB induced cox-2 gene expression in human keratinocytes. Since cox-2 expression plays an important role in UV carcinogenesis, p38 could be a potential molecular target for chemoprevention of skin cancer.[2] During renal injury, activation of p38 mitogen-activated protein kinase (MAPK) in proximal tubular cells plays an important role in the inflammatory events that eventually lead to renal fibrosis. We hypothesized that local inhibition of p38 within these cells may be an interesting approach for the treatment of renal fibrosis. To effectuate this, we developed a renal-specific conjugate of the p38 inhibitor SB202190 [4-(4-fluorophenyl)-2-(4-hydroxyphenyl)-5-(4-pyridyl)1H-imidazole] and the carrier lysozyme. First, we demonstrated that SB202190 inhibited the expression of albumin-induced proinflammatory (monocyte chemoattractant protein-1) and transforming growth factor (TGF)-beta1-induced profibrotic (procollagen-Ialpha1) genes over 50% in renal tubular cells (normal rat kidney-52E). Next, we conjugated SB202190 via a carbamate linkage to lysozyme. However, this conjugate rapidly released the drug upon incubation in serum. Therefore, we applied a new platinum(II)-based linker approach, the so-called universal linkage system (ULS), which forms a coordinative bond with SB202190. The SB202190-ULS-lysozyme remained stable in serum but released the drug in kidney homogenates. SB202190-ULS-lysozyme accumulated efficiently in renal tubular cells and provided a local drug reservoir during a period of 3 days after a single intravenous injection. Treatment with SB202190-ULS-lysozyme inhibited TGF-beta1-induced gene expression for procollagen-Ialpha1 by 64% in HK-2 cells. Lastly, we evaluated the efficacy of a single dose of the conjugate in the unilateral renal ischemia-reperfusion rat model. A reduction of intrarenal p38 phosphorylation and alpha-smooth muscle actin protein expression was observed 4 days after the ischemia-reperfusion injury. In conclusion, we have developed a novel strategy for local delivery of the p38 MAPK inhibitor SB202190, which may be of use in the treatment of renal fibrosis[3]. |
Animal Protocol |
C57BL/6J mice injected i.d. with a sterile solution of either control IgG or PV IgG
12.5 μg Administered via i.d. The 60 Wistar rats were randomly assigned to the sham-operated group, the VaD model group, and the SB202190 group (20 animals each) using a random number table. The VaD rat model (n = 40) was established by separating and ligating the bilateral carotid artery via two-vessel occlusion (2-VO). For animals of the sham-operated group (n = 20), the bilateral carotid artery was separated using the same methods but without ligation. After recovery, animals of the SB202190 group received intracerebroventricular (ICV) injection of SB202190 (dissolved in 100% DMSO and then diluted in normal saline (NS) for a final concentration of DMSO of 0.1%) and both the VaD model and sham-operated groups received ICV injection of equal volume 0.1% DMSO. In each group, eight rats were examined in the Morris water maze to assess spatial learning and memory, six rats were sacrificed and brain sections were prepared for TUNEL staining and Bcl-2/caspase-3 immunohistochemistry, and six rats were sacrificed and tissue homogenates were prepared for Western blot assay of phospho-p38 MAPK expression.[12] All animals were administered 0.1% DMSO or SB202190 immediately after sham or 2-VO surgery by ICV injection. Briefly, after anesthesia by IP injection of a 10% chloral hydrate (0.35 mL/100 g body weight), the animal was secured within a Jiangwan I-C rat stereotaxic frame. The site for ICV injection was 0.8 mm caudal to bregma and 1.5 mm to the right of the midline. A hole was drilled horizontally with an electric drill and 5 μL of 0.1% DMSO or 10 μmol/L SB202190 solution was injected using a microinjector. The injection was completed in 4 min and the needle kept in position for an additional 2 min. One week after ICV injection, animals were examined in the Morris water maze or sacrificed and brain tissues were prepared for TUNEL staining, immunofluorescence, and Western blot.[2] Intraperitoneal lipopolysaccharide (30 mg/kg), tail vein injection of bacteria (Staphylococcus aureus + Salmonella Typhimurium, 5 x 10(7) colony forming units/kg) and cecal ligation and puncture (CLP) with or without antibiotics (Augmentin, 100 mg/kg) were the septic models used. Animals received control, SB-202190 (a p38 inhibitor), or SN-50 (an NF-kappaB inhibitor), and mortality was assessed by log-rank analysis. Blood was collected at different time points for cytokine analysis, and splenic tissue was used for cytoplasmic protein extraction to assess kinase activation.[8] |
References |
[1]. Biochem J. 2000 Oct 1;351(Pt 1):95-105. [2]. J Biol Chem. 1998 Jun 26;273(26):16415-20. [3]. Oncogene. 2001 Jun 28;20(29):3921-6. [4]. J Pharmacol Exp Ther. 2006 Oct;319(1):8-19. [5]. Proc Natl Acad Sci U S A. 2006 Aug 22;103(34):12855-60. [6]. Cell Signal. 2008 Apr;20(4):675-83. [7]. Leuk Res. 2009 May;33(5):693-9. [8]. J Surg Res. 2009 Mar;152(1):46-53. [9]. Cancer Res. 2011 Feb 1;71(3):1041-9. [10]. Mol Cancer Ther. 2012 Mar;11(3):561-71. |
Additional Infomation |
SB-202190 is a member of the class of imidazoles that is 1H-imidazole in which the hydrogens at positions 2, 4, and 5 are replaced by 4-hydroxyphenyl, pyridin-4-yl, and 4-fluorophenyl groups, respectively. It is a widely used inhibitor of mitogen-activated protein kinase (MAPK) alpha and beta. It has a role as an EC 2.7.11.24 (mitogen-activated protein kinase) inhibitor and an apoptosis inducer. It is a member of imidazoles, a member of phenols, a member of pyridines and an organofluorine compound.
4-(4-Fluorophenyl)-2-(4-hydroxyphenyl)-5-(4-pyridyl)-1H-imidazole has been reported in Mammea siamensis with data available. p38, a subfamily of the mitogen-activated protein kinase, regulates gene expression in response to various extracellular stimuli. The pyridinyl imidazoles like SB202190 are specific inhibitors of p38alpha and p38beta and have been widely used in investigation of the biological functions of p38. Here we show that SB202190 by itself was sufficient to induce cell death, with typical apoptotic features such as nucleus condensation and intranucleosomal DNA fragmentation. SB202190 stimulated the activity of CPP32-like caspases, and its apoptotic effect was completely blocked by the protease inhibitor benzyloxycarbonyl-Val-Ala-Asp-fluoromethyl ketone and expression of bcl-2. In addition, SB202190 was able to potentiate apoptosis induced by Fas(APO-1) ligation or UV irradiation. Expression of p38beta attenuated the apoptotic effect of SB202190 and the cell death induced by Fas ligation and UV irradiation. In contrast, expression of p38alpha induced cell death mildly. These results indicate that SB202190 induces apoptosis through activation of CPP32-like caspases and suggest that distinct members of the p38 subfamily of mitogen-activated protein kinase have different functions in apoptosis.[1] |
Molecular Formula |
C20H14N3OF
|
---|---|
Molecular Weight |
331.34
|
Exact Mass |
331.112
|
Elemental Analysis |
C, 72.50; H, 4.26; F, 5.73; N, 12.68; O, 4.83
|
CAS # |
152121-30-7
|
Related CAS # |
SB 202190 hydrochloride;350228-36-3
|
PubChem CID |
5169
|
Appearance |
white solid powder
|
Density |
1.3±0.1 g/cm3
|
Boiling Point |
565.7±50.0 °C at 760 mmHg
|
Melting Point |
240-243℃
|
Flash Point |
295.9±30.1 °C
|
Vapour Pressure |
0.0±1.6 mmHg at 25°C
|
Index of Refraction |
1.653
|
LogP |
5
|
Hydrogen Bond Donor Count |
2
|
Hydrogen Bond Acceptor Count |
4
|
Rotatable Bond Count |
3
|
Heavy Atom Count |
25
|
Complexity |
415
|
Defined Atom Stereocenter Count |
0
|
SMILES |
FC1C([H])=C([H])C(=C([H])C=1[H])C1=C(C2C([H])=C([H])N=C([H])C=2[H])N([H])C(C2C([H])=C([H])C(=C([H])C=2[H])O[H])=N1
|
InChi Key |
QHKYPYXTTXKZST-UHFFFAOYSA-N
|
InChi Code |
InChI=1S/C20H14FN3O/c21-16-5-1-13(2-6-16)18-19(14-9-11-22-12-10-14)24-20(23-18)15-3-7-17(25)8-4-15/h1-12,25H,(H,23,24)
|
Chemical Name |
4-[4-(4-fluorophenyl)-5-pyridin-4-yl-1H-imidazol-2-yl]phenol
|
Synonyms |
FHPI; SB-202190; SB202190; 152121-30-7; SB 202190; SB202190; SB-202190; FHPI; 4-(4-Fluorophenyl)-2-(4-hydroxyphenyl)-5-(4-pyridyl)-1H-imidazole; SB202190 (FHPI); 4-(4-(4-fluorophenyl)-5-(pyridin-4-yl)-1H-imidazol-2-yl)phenol; SB202190
|
HS Tariff Code |
2934.99.9001
|
Storage |
Powder -20°C 3 years 4°C 2 years In solvent -80°C 6 months -20°C 1 month |
Shipping Condition |
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
|
Solubility (In Vitro) |
|
|||
---|---|---|---|---|
Solubility (In Vivo) |
Solubility in Formulation 1: ≥ 2.08 mg/mL (6.28 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL. Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution. Solubility in Formulation 2: ≥ 2.08 mg/mL (6.28 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution. For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly. Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution. View More
Solubility in Formulation 3: ≥ 2.08 mg/mL (6.28 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution. Solubility in Formulation 4: 1% DMSO+30% polyethylene glycol+1% Tween 80: 30mg/mL |
Preparing Stock Solutions | 1 mg | 5 mg | 10 mg | |
1 mM | 3.0180 mL | 15.0902 mL | 30.1805 mL | |
5 mM | 0.6036 mL | 3.0180 mL | 6.0361 mL | |
10 mM | 0.3018 mL | 1.5090 mL | 3.0180 mL |
*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.
Calculation results
Working concentration: mg/mL;
Method for preparing DMSO stock solution: mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.
Method for preparing in vivo formulation::Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.
(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
(2) Be sure to add the solvent(s) in order.
Inhibiting p38MAPK prevents clinical blistering in PV passive transfer mice. Neonatal C57BL/6J mice were injected i.d. with either PV IgG (1.5 mg of IgG/g body weight) (Left) or PV IgG (1.5 mg of IgG/g body weight) plus SB202190 (Right). After 18 h, the skin of neonatal mice from the test and control groups was examined clinically. PV IgG-treated mice have a positive Nikolsky’s sign (white arrows), demonstrating loss of epithelial cell–cell adhesion. In contrast, mice treated with the SB202190 and PV IgG have a negative Nikoslky’s sign, indicating that epithelial adhesion remains intact. Proc Natl Acad Sci U S A. 2006 Aug 22; 103(34): 12855–12860. td> |

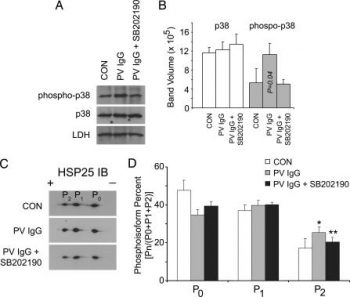

Inhibition of PV IgG-mediated p38MAPK and HSP27 phosphorylation in skin of PV IgG plus SB202190-treated mice. Neonatal C57BL/6 WT mice were injected i.d. with control IgG (CON; 1 mg of IgG/g body weight), PV IgG (1 mg of IgG/g body weight), or SB202190 and then PV IgG (PV IgG plus SB202190). Skin biopsies were obtained after 18 h of treatment and extracted in IEF lysis buffer. Proc Natl Acad Sci U S A. 2006 Aug 22; 103(34): 12855–12860. td> |
