ML18

Alias: ML 18; ML-18; ML18
Cat No.:V4011 Purity: ≥98%
ML-18 (the S-enantiomer, the enantiomer is EMY-98), a nonpeptide analogs of PD176252, is a BRS-3 (Bombesin receptor subtype 3) antagonist with an IC50 of 4.8 μM.
ML18
ML18 Chemical Structure CAS No.: 1422269-30-4
Product category: Bombesin Receptor
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

ML-18 (the S-enantiomer, the enantiomer is EMY-98), a nonpeptide analogs of PD176252, is a BRS-3 (Bombesin receptor subtype 3) antagonist with an IC50 of 4.8 μM. ML-18 and EMY-98, with IC50 values of 4.8 and >100μM, respectively, inhibited specific (125)I-BA1 (DTyr-Gln-Trp-Ala-Val-βAla-His-Phe-Nle-NH2)BB(6-14) binding to NCI-H1299 lung cancer cells that were stably transfected with BRS-3. On the other hand, ML-18 exhibited a lower affinity for binding to the GRPR and NMBR, with IC50 values exceeding 100μM and 16μM, respectively. With lung cancer cells loaded with FURA2-AM, ML-18 (16μM) but not its enantiomer EMY-98 inhibited 10nM BA1's capacity to elevate cytosolic Ca(2+) in a reversible manner. Lung cancer cells' ability to become tyrosine phosphorylated on EGFR and ERK in response to 100nM BA1 was inhibited by ML-18 (16μM), but not by EMY-98. ML-18 but not EMY-98 inhibited the proliferation of lung cancer cells. The findings suggest that ML-18 is a nonpeptide antagonist of BRS-3 that can be used as a model to increase potency and selectivity. A G protein coupled receptor (GPCR) for the bombesin (BB)-family of peptides is known as the bombesin receptor subtype (BRS)-3. As an orphan GPCR, BRS-3's physiological function is poorly understood because there aren't any particular agonists or antagonists. While PD176252 is a nonpeptide antagonist for the gastrin releasing peptide (GRP) R and NMBR but not BRS-3, PD168368 is a nonpeptide antagonist for the neuromedin B (NMB) receptor (R).

Biological Activity I Assay Protocols (From Reference)
Targets
BRS-3 ( IC50 = 4.8 μM )
ML-18 blocks specific 125I-BA1 (DTyr-Gln-Trp-Ala-Val-βAla-His-Phe-Nle-NH2)BB6-14 binding to NCI-H1299 lung cancer cells that have been stably transfected with BRS-3 with IC50 values of 4.8 μM. ML-18 exhibits a reduced affinity for binding the GRPR and NMBR, with IC50 values exceeding 100 μM and 16 μM, respectively. ML-18 at 16 μM reversibly prevents 10 nM BA1 from increasing cytosolic Ca2+ in lung cancer cells that have been loaded with FURA2-AM. ML-18 at 16 μM prevents 100 nM BA1 from causing EGFR and ERK tyrosine phosphorylation in lung cancer cells. It prevents lung cancer cells from proliferating[1].
ln Vitro
ML-18 blocks specific 125I-BA1 (DTyr-Gln-Trp-Ala-Val-βAla-His-Phe-Nle-NH2)BB6-14 binding to NCI-H1299 lung cancer cells that have been stably transfected with BRS-3 with IC50 values of 4.8 μM. ML-18 exhibits a reduced affinity for binding the GRPR and NMBR, with IC50 values exceeding 100 μM and 16 μM, respectively. ML-18 at 16 μM reversibly prevents 10 nM BA1 from increasing cytosolic Ca2+ in lung cancer cells that have been loaded with FURA2-AM. ML-18 at 16 μM prevents 100 nM BA1 from causing EGFR and ERK tyrosine phosphorylation in lung cancer cells. It prevents lung cancer cells from proliferating[1].
ML-18 inhibited specific ¹²⁵I-BA1 binding to NCI-H1299 lung cancer cells stably transfected with BRS-3 with an IC₅₀ of 4.8 ± 0.6 μM, while its R-enantiomer EMY-98 had an IC₅₀ >100 μM. In NCI-H727 lung cancer cells, the IC₅₀ for ML-18 was 6.4 ± 1.1 μM.
ML-18 (16 μM), but not EMY-98, antagonized the ability of 10 nM BRS-3 agonist BA1 to elevate cytosolic Ca²⁺ in a reversible manner in both BRS-3-transfected NCI-H1299 and NCI-H727 lung cancer cells pre-loaded with Fura-2AM. The antagonist effect was overcome by subsequent addition of higher concentrations of BA1 (0.1 and 1 μM).
ML-18 (16 μM), but not EMY-98, also antagonized the increase in cytosolic Ca²⁺ induced by 10 nM of the selective BRS-3 agonist MK-5046.
Treatment of BRS-3-transfected NCI-H1299 cells with 0.1 μM BA1 for 2 minutes significantly increased tyrosine phosphorylation of FAK (10.9-fold), ERK (2.9-fold), and EGFR (5.9-fold). This BA1-induced phosphorylation was significantly inhibited by pre-treatment with 16 μM ML-18 for 30 minutes, but not by lower concentrations (0.16 or 1.6 μM).
In a 2-day MTT proliferation assay, ML-18 inhibited the growth of BRS-3-transfected NCI-H1299 cells in a dose-dependent manner, with moderate and strong inhibition observed at 16 μM and 48 μM, respectively. The IC₅₀ for gefitinib alone was >30 μM, but co-treatment with ML-18 (48 μM) shifted the gefitinib dose-response curve to the left, yielding an approximate IC₅₀ of 4.5 μM for gefitinib.
In a 2-week clonogenic assay using NCI-H727 cells, ML-18 (1.6 μM) alone significantly reduced colony number. Furthermore, ML-18 (1.6 μM) inhibited the increase in colony number stimulated by 0.01 μM BA1. The combination of ML-18 and gefitinib (1 μM) resulted in a stronger reduction in colony number than either agent alone. [1]
Enzyme Assay
The cells are cultured in SIT buffer supplemented with varying concentrations of unlabelled competitor (ML-18), 0.25% bovine serum albumin, 250 μg/mL bacitracin, and 1253I-BA1 (100,000 cpm). Following a 30-minute incubation period at 37°C, free 1253I-BA1 is eliminated by three rounds of buffer washing, and the cells containing bound 1253I-BA1 are dissolved in 0.2 N NaOH and counted using a gamma counter. For every competitor without a label, the IC50 is computed[1].
Cell Assay
The MTT assay is used to determine cell viability. After transfecting NCI-H727 or NCI-H1299 cells with BRS-3, ML-18 (0, 4.8, 16, 48 μM) or gefitinib is added. 15 μL of 0.1% MTT solution was added after two days. 150 μL of DMSO is added after 4 hours. The optical density at 570 nm is calculated after 16 hours[1].
References

[1]. ML-18 is a non-peptide bombesin receptor subtype-3 antagonist which inhibits lung cancer growth. Peptides. 2015 Feb;64:55-61.

Additional Infomation
ML-18 is the (S)-enantiomer of the PD176252 analogue with a molecular weight of 569.9 Daltons. It is a stereoselective, reversible non-peptide BRS-3 antagonist. The compound was synthesized from N-BOC-S-tryptophan and purified by chiral HPLC to an enantiomer excess of >95%. In the experiment, it was dissolved in DMSO to prepare a 10 mM stock solution. The study concluded that ML-18 is the first reported non-peptide BRS-3 antagonist and can be used as a lead compound for the development of drugs with higher affinity and specificity for BRS-3. [1]
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C32H35N5O5
Molecular Weight
569.66
Exact Mass
569.263
Elemental Analysis
C, 67.47; H, 6.19; N, 12.29; O, 14.04
CAS #
1422269-30-4
Related CAS #
1422269-30-4
PubChem CID
91827363
Appearance
White to yellow solid powder
Density
1.3±0.1 g/cm3
Boiling Point
803.5±75.0 °C at 760 mmHg
Flash Point
439.7±37.1 °C
Vapour Pressure
0.0±3.0 mmHg at 25°C
Index of Refraction
1.652
LogP
8.03
Hydrogen Bond Donor Count
4
Hydrogen Bond Acceptor Count
5
Rotatable Bond Count
9
Heavy Atom Count
42
Complexity
906
Defined Atom Stereocenter Count
1
SMILES
O=C([C@]([H])(C([H])([H])C1=C([H])N([H])C2=C([H])C([H])=C([H])C([H])=C12)N([H])C(N([H])C1C([H])=C([H])C(=C([H])C=1[H])[N+](=O)[O-])=O)N([H])C([H])([H])C1(C2C([H])=C([H])C(=C([H])C=2[H])OC([H])([H])[H])C([H])([H])C([H])([H])C([H])([H])C([H])([H])C1([H])[H]
InChi Key
JOKVJNCYOSFDGC-LJAQVGFWSA-N
InChi Code
InChI=1S/C32H35N5O5/c1-42-26-15-9-23(10-16-26)32(17-5-2-6-18-32)21-34-30(38)29(19-22-20-33-28-8-4-3-7-27(22)28)36-31(39)35-24-11-13-25(14-12-24)37(40)41/h3-4,7-16,20,29,33H,2,5-6,17-19,21H2,1H3,(H,34,38)(H2,35,36,39)/t29-/m0/s1
Chemical Name
(2S)-3-(1H-indol-3-yl)-N-[[1-(4-methoxyphenyl)cyclohexyl]methyl]-2-[(4-nitrophenyl)carbamoylamino]propanamide
Synonyms
ML 18; ML-18; ML18
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ≥ 100 mg/mL (~175.6 mM)
Water: N/A
Ethanol: N/A
Solubility (In Vivo)
Solubility in Formulation 1: 2.5 mg/mL (4.39 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with sonication.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (4.39 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.7554 mL 8.7772 mL 17.5543 mL
5 mM 0.3511 mL 1.7554 mL 3.5109 mL
10 mM 0.1755 mL 0.8777 mL 1.7554 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • ML18

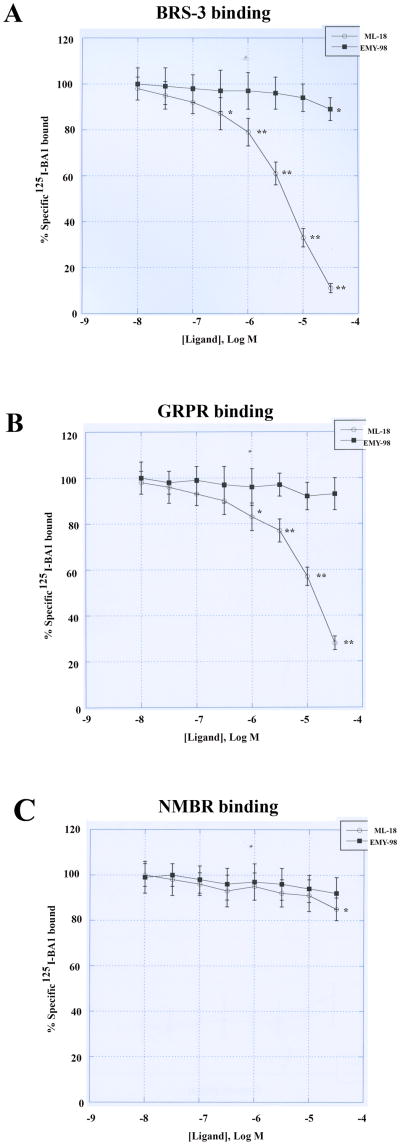

    Receptor binding.

  • ML18

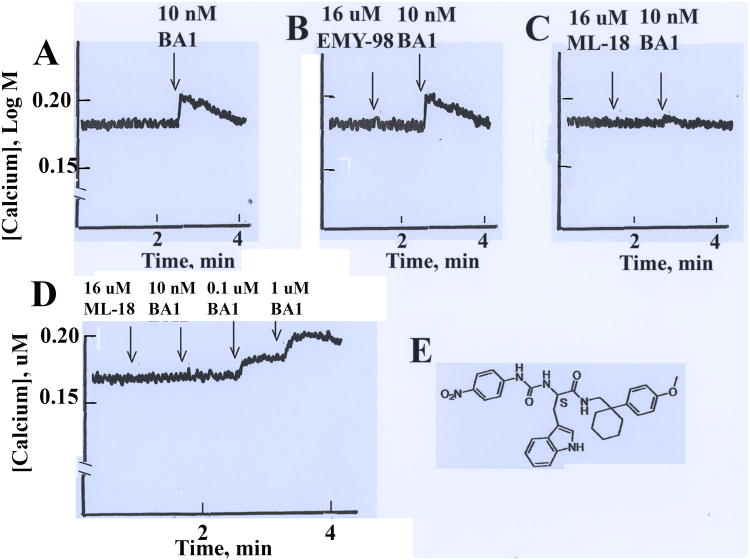

    Cytosolic Ca2+. BRS-3 transfected NCI-H1299 cells were loaded with Fura-2AM and the cytosolic Ca2+determined for 4 min after the addition of (A) 10 nM BA1, (B) 16 μM EMY-98 followed by 10 nM BA1, (C) 16 μM ML-18 followed by 10 nM BA1, (D) NCI-H727 cells are treated with 16 μM ML-18 followed by 10 nM BA1, 0.1 μM BA1 and 1 μM BA1.


    ML18

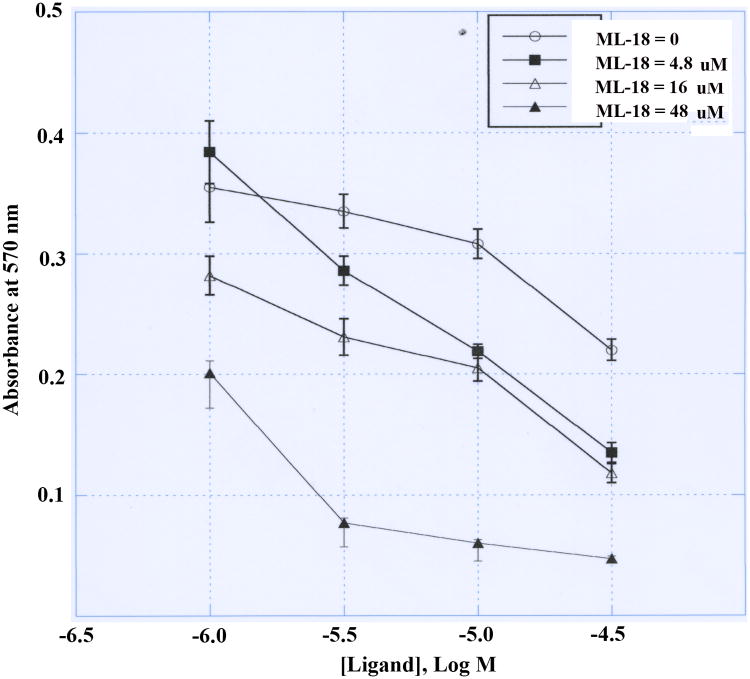

    MTT assay.2015 Feb;64:55-61.

  • ML18

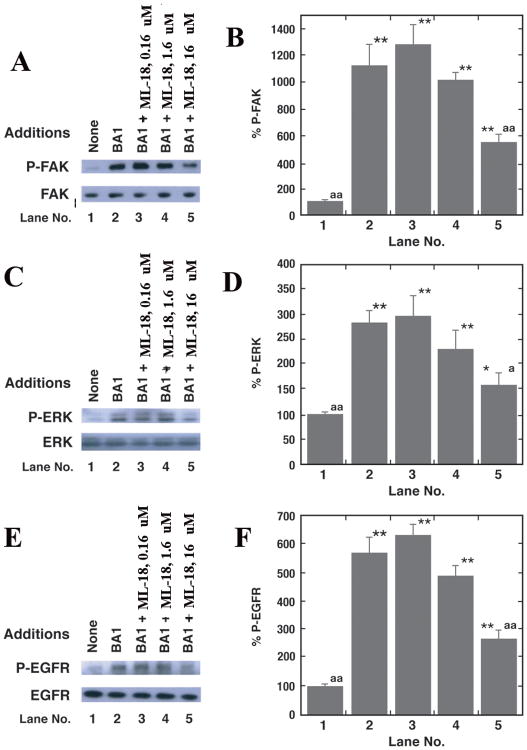

    Western blot.


    ML18

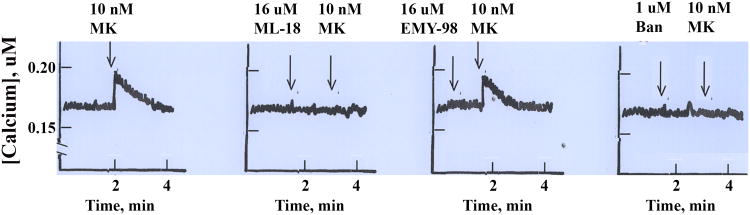

    Cytosolic Ca2+. NCI-H727 cells were loaded with Fura-2AM and the cytosolic Ca2+determined for 4 min after the addition of (A) 10 nM MK 5046 (MK), (B) 16 μM ML-18 followed by 10 nM MK, (C) 16 μM EMY-98 followed by 10 nM MK and (D) 1 μM Bantag (Ban) by 10 nM MK.2015 Feb;64:55-61.
