Sapanisertib (NK128; MLN0128; TAK228)

Alias: MLN-0128; Sapanisertib; TAK-228; TAK 228; TAK228; INK128; INK-128; INK 128; MLN0128; MLN 0128; MLN-0128
Cat No.:V0185 Purity: ≥98%
Sapanisertib (NK-128; MLN-0128; TAK-228) is a novel, potent, orally bioavailable and selective inhibitor of mTOR (mammalian target of rapamycin) with potential anticancer activity.
Sapanisertib (NK128; MLN0128; TAK228) Chemical Structure CAS No.: 1224844-38-5
Product category: mTOR
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
2mg
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

Sapanisertib (NK-128; MLN-0128; TAK-228) is a novel, potent, orally bioavailable and selective inhibitor of mTOR (mammalian target of rapamycin) with potential anticancer activity. In cell-free assays, it has an IC50 of 1 nM and inhibits mTOR. INK 128 exhibits tumor growth inhibition efficacy at a dose of 0.3 mg/kg/day in a ZR-75-1 breast cancer xenograft model. In multiplexenograft models, daily oral administration of INK 128 reduces tumor growth and angiogenesis.

Biological Activity I Assay Protocols (From Reference)
Targets
mTOR (IC50 = 1 nM); PI3Kα (IC50 = 219 nM); PI3Kγ (IC50 = 221 nM); PI3Kδ (IC50 = 230 nM); PI3Kβ (IC50 = 5.293 μM); mTORC1; mTORC2; Autophagy
ln Vitro
Sapanisertib (INK-128) has an enzymatic inhibitory activity against mTOR and a selectivity for PI3K kinases that is greater than 100-fold[1]. In PC3 cells, sapanisertib (INK-128) specifically reduces the protein-level expression of YB1, MTA1, vimentin, and CD44 but not the transcript level. Sapanisertib (INK-128) reduces the ability of PC3 prostate cancer cells to invade. Additionally, Sapanisertib (INK-128) inhibits the migration of cancer cells beginning at 6 hours after treatment, precisely coinciding with the time at which pro-invasion gene expression is reduced but prior to any alterations in the cell cycle or overall global protein synthesis[2].
ln Vivo
Sapanisertib (INK-128) exhibits tumor growth inhibition efficacy at a dose of 0.3 mg/kg/day in a ZR-75-1 breast cancer xenograft model[1]. In PtenL/L mice, INK128 treatment completely restores 4EBP1 and p70S6K1/2 phosphorylation to wild-type levels. Treatment with sapanisertib (INK-128) reduces PTENL/L mice's prostatic intraepithelial neoplasia (PIN) lesions by 50% and causes programmed cell death in a number of cancer cell lines[2].
Enzyme Assay
Sapanisertib (INK-128) is a ATP-dependentmTOR1/2inhibitor with anIC50of 1 nM for mTOR kinase.Sapanisertib (INK-128) exhibits an enzymatic inhibition activity against mTOR and more than 100-fold selectivity to PI3K kinases.Cell Assay:INK 128 exhibits an enzymatic inhibition activity against mTOR and more than 100-fold selectivity to PI3K kinases. As TORC1/2 inhibitor, INK 128 inhibits both the phosphorylation of S6 and 4EBP1, the downstream substrates of TORC1, and selectively inhibits AKT phosphorylation at Ser473, the downstream substrate of TORC2. Furthermore, INK 128 also shows potent inhibition effects on cell lines resistant to rapamycin and pan-PI3K inhibitors.
Cell Assay
PC3 cells are treated with the appropriate drug for 48 h, and proliferation is measured using CellTiter-Glo Luminescent reagent. The concentration of Sapanisertib (INK-128) required to achieve a 50% inhibition of cell growth (IC50) is determined using concentrations ranging from 20.0 M to 0.1 nM (12-point curve).
Animal Protocol
A subcutaneous inoculation of 5×106 MDA-MB-361 cells is administered to naked mice in the right subscapular region. The allocation of mice to vehicle control or treatment groups occurs once tumors have grown to a size of 150–200 mm3. Sapanisertib (INK-128) is formulated in 5% polyvinylpropyline, 15% NMP, and 80% water and is given orally by gavage at 0.3 mg/kg and 1 mg/kg daily.
References

[1]. mTOR Mediated Anti-Cancer Drug Discovery. Drug Discovery Today: Therapeutic Strategies. 2009, 6(2), 47-55.

[2]. The translational landscape of mTOR signalling steers cancer initiation and metastasis. Nature. 2012 Feb 22;485(7396):55-61.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C15H15N7O
Molecular Weight
309.3259
Exact Mass
309.1338
Elemental Analysis
C, 58.24; H, 4.89; N, 31.70; O, 5.17
CAS #
1224844-38-5
Related CAS #
1224844-38-5
Appearance
White to off white solid powder
SMILES
CC(C)N1C2=NC=NC(=C2C(=N1)C3=CC4=C(C=C3)OC(=N4)N)N
InChi Key
GYLDXIAOMVERTK-UHFFFAOYSA-N
InChi Code
InChI=1S/C15H15N7O/c1-7(2)22-14-11(13(16)18-6-19-14)12(21-22)8-3-4-10-9(5-8)20-15(17)23-10/h3-7H,1-2H3,(H2,17,20)(H2,16,18,19)
Chemical Name
5-(4-amino-1-propan-2-ylpyrazolo[3,4-d]pyrimidin-3-yl)-1,3-benzoxazol-2-amine
Synonyms
MLN-0128; Sapanisertib; TAK-228; TAK 228; TAK228; INK128; INK-128; INK 128; MLN0128; MLN 0128; MLN-0128
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~62 mg/mL (~200.4 mM)
Water: <1 mg/mL
Ethanol: ~2 mg/mL (~6.5 mM)
Solubility (In Vivo)
30% PEG400+0.5% Tween80+5% propylene glycol: 30mg/mL (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 3.2328 mL 16.1640 mL 32.3279 mL
5 mM 0.6466 mL 3.2328 mL 6.4656 mL
10 mM 0.3233 mL 1.6164 mL 3.2328 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Status Interventions Conditions Sponsor/Collaborators Start Date Phases
NCT03047213 Active
Recruiting
Drug: Sapanisertib Recurrent Bladder
Carcinoma
Metastatic Transitional
Cell Carcinoma
National Cancer Institute
(NCI)
August 24, 2017 Phase 2
NCT02159989 Active
Recruiting
Drug: Sapanisertib
Biological: Ziv-Aflibercept
Ovarian Carcinoma
Fibrolamellar Carcinoma
National Cancer Institute
(NCI)
June 3, 2014 Phase 1
NCT02133183 Active
Recruiting
Drug: Sapanisertib Glioblastoma
Gliosarcoma
National Cancer Institute
(NCI)
May 12, 2014 Phase 1
NCT02503722 Active
Recruiting
Drug: Sapanisertib
Drug: Osimertinib
Metastatic Lung Non-Small
Cell Carcinoma
Recurrent Lung Non-Small
Cell Carcinoma
National Cancer Institute
(NCI)
October 13, 2016 Phase 1
NCT02484430 Active
Recruiting
Drug: Sapanisertib B Acute Lymphoblastic Leukemia
T Acute Lymphoblastic Leukemia
National Cancer Institute
(NCI)
October 20, 2016 Phase 2
Biological Data
  • INK 128 (MLN0128)

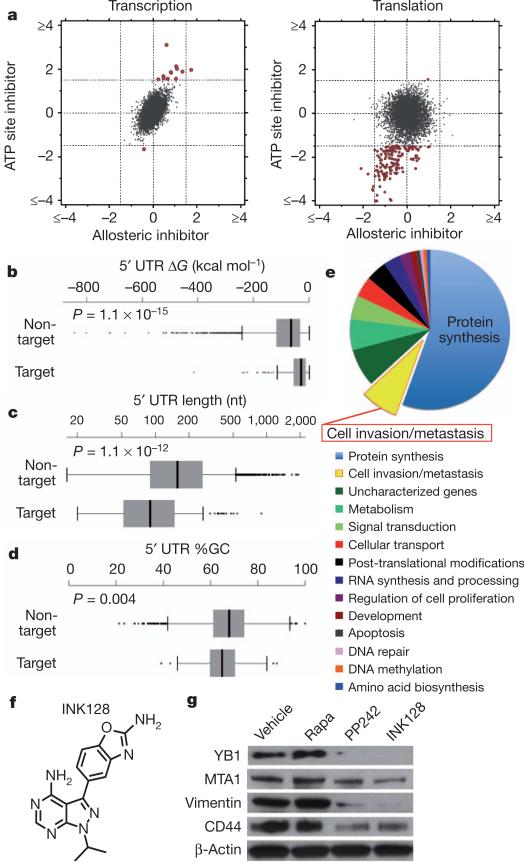

    Ribosome profiling reveals mTOR-dependent specialized translational control of the prostate cancer genome.2012 Feb 22;485(7396):55-61.

  • INK 128 (MLN0128)

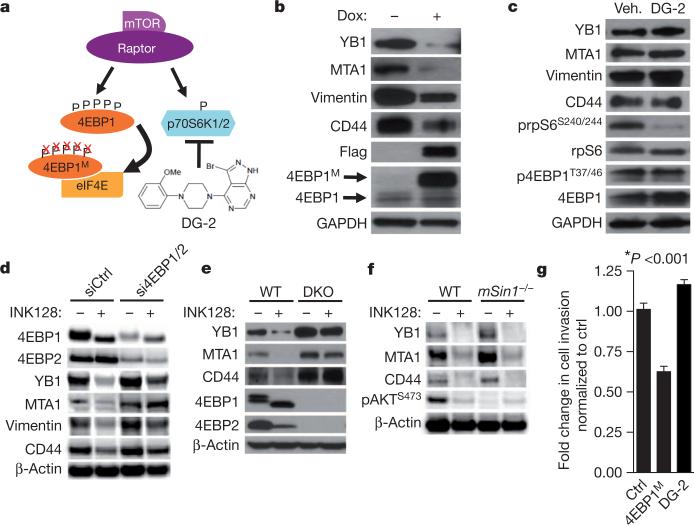

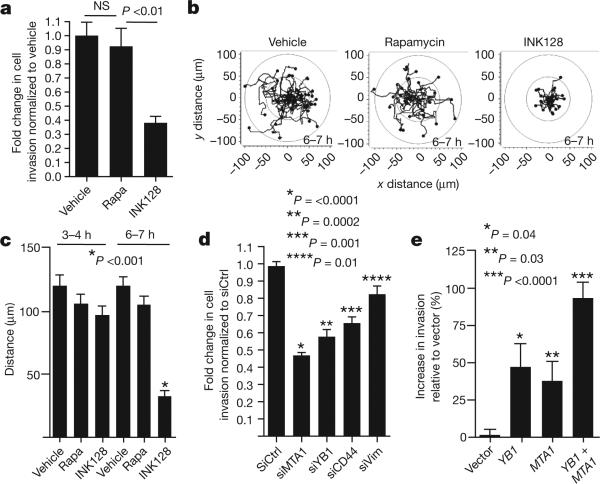

    mTOR promotes prostate cancer cell migration and invasion through a translationally regulated gene signature.

    INK 128 (MLN0128)

    TheThe 4EBP1–eIF4E axis controls the post-transcriptional expression of mTOR-sensitive invasion genes.2012 Feb 22;485(7396):55-61

  • INK 128 (MLN0128)

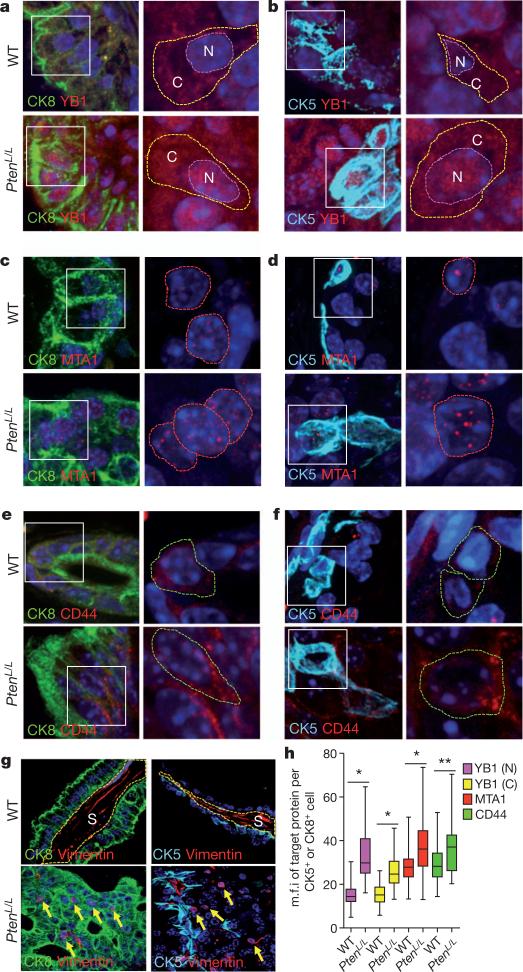

    mTOR hyperactivation augments translation ofYB1, MTA1, CD44and vimentin mRNAs in a subset of pre-invasive prostate cancer cellsin vivo.2012 Feb 22;485(7396):55-61.

  • INK 128 (MLN0128)

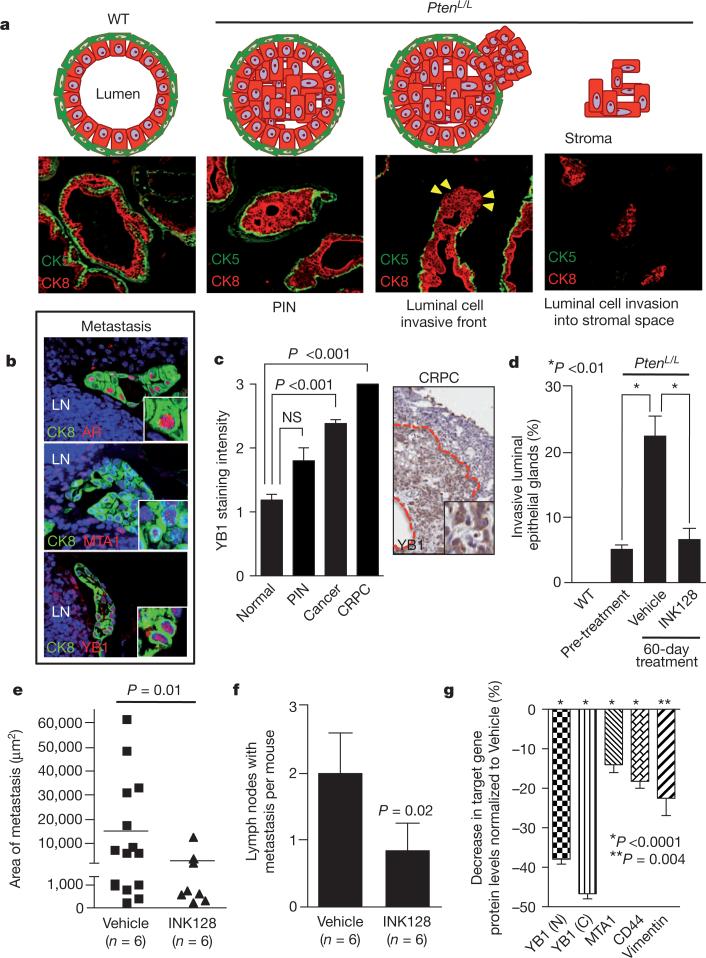

    Complete mTOR inhibition by INK128 treatment prevents prostate cancer invasion and metastasisin vivo.2012 Feb 22;485(7396):55-61.

  • INK 128 (MLN0128)

    INK 128 (MLN0128)


  • INK 128 (MLN0128)

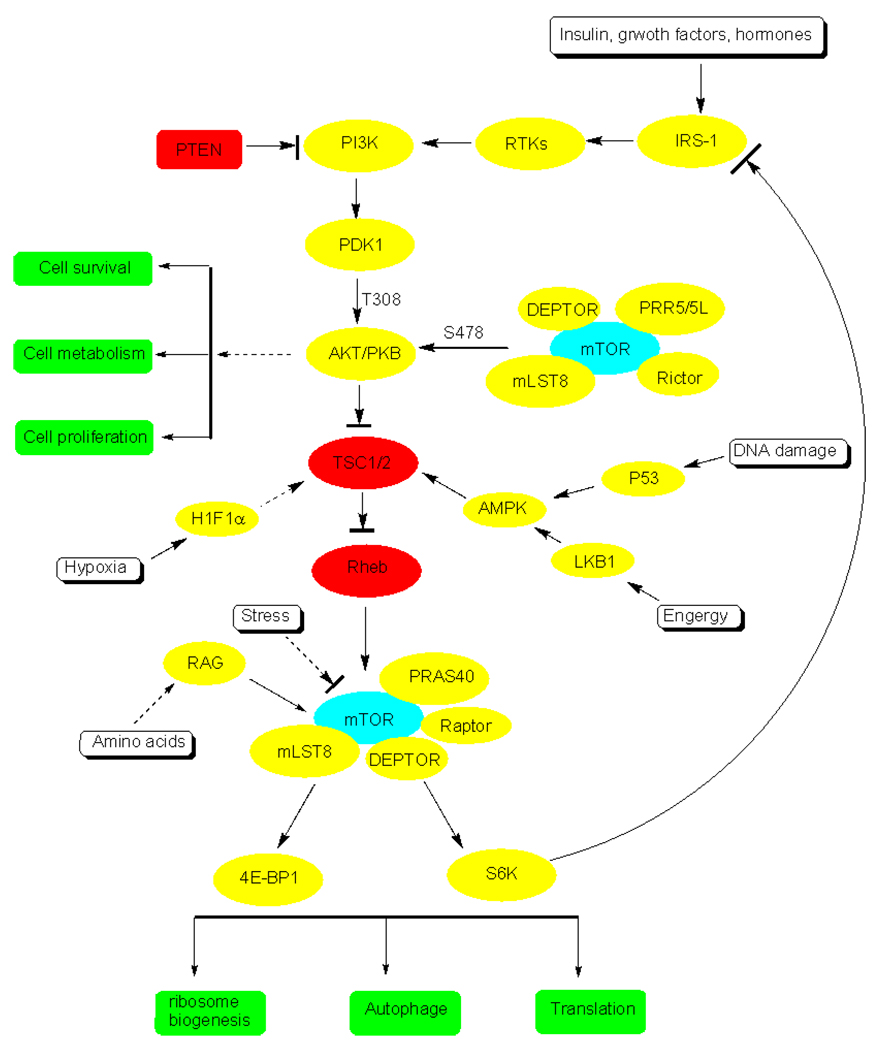

    mTOR signal pathway.2009 Summer;6(2):47-55.
