    CW069
    CW069

    Price:
    Market Price:

    This product is for research use only, not for human use. We do not sell to patients.
    Number: - + Pieces(InventoryPieces)
    InvivoChem Cat #: V1618
    CAS #: 1594094-64-0 Purity ≥98%

    Description: CW069 is a potent, selective and allosteric inhibitor of microtubule motor protein HSET with IC50 of 75 μM. CW069 exhibited significant selectivity over KSP. In silico model for HSET binding, the highly favorable hydrogen bond formed between the carboxylate of CW069 and the guanidinium group of Arg521 in HSET. Also, a cation-πinteraction formed between the exposed phenyl group of CW069 and the Arg521 side chain. Arg521 was critical for CW069 selectivity.

    References: Chem Biol. 2013 Nov 21;20(11):1399-410.

    Customer Validation
    Official Supplier of
    • VE
    • OF
    • YALE
    • hhmi
    • 香港大学
    Related Products
    Publications Citing InvivoChem Products
    • Physicochemical and Storage Information
    • Protocol
    • Quality Control Documentation
    • Related Biological Data
    • Customer Review
    Molecular Weight (MW)500.33
    FormulaC23H21IN2O3
    CAS No.1594094-64-0
    Storage-20℃ for 3 years in powder form
    -80℃ for 2 years in solvent
    Solubility (In vitro)DMSO: 100 mg/mL (199.9 mM)
    Water: <1 mg/mL
    Ethanol: 4 mg/mL (8.0 mM)
    Other info

    Chemical Name: 5-Iodo-2-[[(2S)-1-oxo-3-phenyl-2-[(phenylmethyl)amino]propyl]amino]-benzoic acid

    InChi Key: IRDIXDXDSUBHIU-NRFANRHFSA-N

    InChi Code: InChI=1S/C23H21IN2O3/c24-18-11-12-20(19(14-18)23(28)29)26-22(27)21(13-16-7-3-1-4-8-16)25-15-17-9-5-2-6-10-17/h1-12,14,21,25H,13,15H2,(H,26,27)(H,28,29)/t21-/m0/s1

    SMILES Code: O=C(O)C1=CC(I)=CC=C1NC([[email protected]@H](NCC2=CC=CC=C2)CC3=CC=CC=C3)=O

    SynonymsCW069; CW-069; CW 069


    • Molarity Calculator
    • Dilution Calculator
    • The molarity calculator equation

      Mass (g) = Concentration (mol/L) × Volume (L) × Molecular Weight (g/mol)

      • Mass
      • Concentration
      • Volume
      • Molecular Weight *
      • =
      • ×
      • ×
    • The dilution calculator equation

      Concentration (start) × Volume (start) = Concentration (final) × Volume (final)

      This equation is commonly abbreviated as: C1V1 = C2V2

      • Concentration (start)
      • ×
      • Volume (start)
      • =
      • Concentration (final)
      • ×
      • Volume (final)
      • ×
      • =
      • ×
      • C1
      •
      • V1
      •
      • C2
      •
      • V2
    In Vitro

    In vitro activity: CW069 increases multipolar spindles in N1E-115 cells with supernumerary centrosomes without altering bipolar spindle morphology in normal human dermal fibroblast cells. CW069 inhibits growth in cancer N1E-115 cells with IC50 of 10 μM, but not in NHDF or primary human bone marrow cells.


    Kinase Assay: The protocol is optimized for use with full-length, N-terminal, 6His-tagged HSET and KSP, and measured the MT-stimulated activity of the proteins. Inhibition of the Gsp synthetase activity of HSET/KSP is observed spectrophotometrically by coupling the hydrolysis of ATP to oxidation of NADH via pyruvate kinase/lactate dehydrogenase reactions. The assay is initiated by adding purified Gsp synthetase/amidase (12.8 nM) to an assay mixture containing the following components (final concentration): 6 nM protein, 0.07 mg/ml MTs (University Biologicals), 1.56 mM glutathione, 10 mM spermidine, 2 mM ATP, 2.7 mM MgCl2, 1 mM phospho(enol)-pyruvate, 0.2 mM NADH, 50 μg/ml lactate dehydrogenase, 100 μg/ml pyruvate kinase, and various concentrations of inhibitor all in 50 mM Na PIPES (pH 6.8) at 37°C. The ADP-Glo detection assay (Promega) is performed as described in the manufacturer’s instructions. All compound additions were performed using a multidrop BioMek Nxp. Plates were read using a Pherastar microplate reader.


    Cell Assay: Cells are cultured in DMEM supplemented with 10% fetal calf serum (FCS) at 37°C and 5% CO2. All compounds used in the Sulforhodamine B colorimetric (SRB) assay are dissolved in DMSO and diluted in culture medium to a final concentration of 0.2% DMSO. For the SRB assay and live-cell imaging, cells are seeded in 96-well plates at a density of 2,500 cells per well. After 24 hr, the cells are treated with compound for 72 hr, with triplicate wells for each concentration. For the SRB assay, the cells are then fixed with trichloroacetic acid (TCA) and stained with SRB. Fluorescence is quantified using an Infinite 200 PRO plate-reader at a wavelength of 545 nm. Compound-treated wells are compared with solvent control wells and the concentration of compound that results in 50% of the solvent-control cell growth is designated as the IC50 concentration, calculated using Graphpad PRISM 6. At least three biological replicates are performed for each assay.

    In Vivo
    Animal model
    Formulation & Dosage
    References

    Chem Biol. 2013 Nov 21;20(11):1399-410.


    These protocols are for reference only. InvivoChem does not independently validate these methods.

    CW069

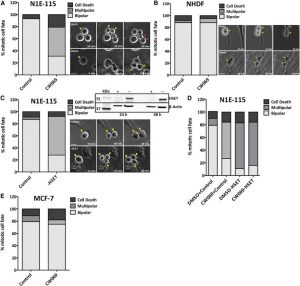

    Effect of CW069 on Mitotic Spindle Morphology in Cells with Normal or Supernumerary Centrosomes. Chem Biol. 2013 Nov 21;20(11):1399-410.


    CW069

    Chem Biol. 2013 Nov 21;20(11):1399-410.


    CW069

    CW069 Does Not Cause Mitotic Arrest in HeLa Cells, and Antagonizes Inhibition of KSP by Monastrol. Chem Biol. 2013 Nov 21;20(11):1399-410.
