Canagliflozin hemihydrate (JNJ 28431754)

Alias: JNJ 28431754 hemihydrate;TA-7284 hemihydrate; JNJ 24831754;TA7284; JNJ-24831754; JNJ24831754AAA hemihydrate; JNJ24831754ZAE; TA 7284;
Cat No.:V3978 Purity: ≥98%
Canagliflozin hemihydrate (alsoknown as TA-7284; JNJ-24831754ZAE; JNJ 28431754AAA; JNJ-28431754; Invokana), thehemihydrated form ofCanagliflozin,is a highly potent and selective SGLT2 inhibitor with anti-diabetic effects.
Canagliflozin hemihydrate (JNJ 28431754) Chemical Structure CAS No.: 928672-86-0
Product category: SGLT
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
100mg
250mg
500mg
1g
Other Sizes

Other Forms of Canagliflozin hemihydrate (JNJ 28431754):

  • Canagliflozin (JNJ 28431754)
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

Canagliflozin hemihydrate (also known as TA-7284; JNJ-24831754ZAE; JNJ 28431754AAA; JNJ-28431754; Invokana), the hemihydrated form of Canagliflozin, is a highly potent and selective SGLT2 inhibitor with anti-diabetic effects. It inhibits hSGLT2 with IC50 of 2.2 nM in a cell-free assay. Canagliflozin exhibits 413-fold selectivity over hSGLT1. Canagliflozin is a FDA approved drug for the treatment of type 2 diabetes. Canagliflozin is an inhibitor of subtype 2 sodium-glucose transport protein (SGLT2), which is responsible for at least 90% of the glucose reabsorption in the kidney. Blocking this transporter causes blood glucose to be eliminated through the urine. Canagliflozin was approved by the FDA on March 29, 2013, and became the first SGLT2 inhibitor approved in the USA.

Biological Activity I Assay Protocols (From Reference)
ln Vitro
In CHO-hSGLT2 cells, canagliflozin inhibits Na+-dependent 14C-AMG uptake with an IC50 of 4.4±1.2 nM. Rat and mouse SGLT2 have IC50 values of 2.0 nM and 3.7 nM, respectively, in CHO-mSGLT2 and CHO-rSGLT2 cells. With an IC50 of 684±159 nM and >1,000 nM, respectively, canagliflozin inhibits the absorption of 14C-AMG in CHO-hSGLT1 and mSGLT1 cells[1].
ln Vivo
In DIO mice, canagliflozin (30 mg/kg) therapy for 4 weeks lowers body weight increase, respiratory exchange ratio, and blood glucose (BG) levels[1]. as canagliflozin (3 mg/kg) is administered for three weeks, rats treated with ZF experience a loss in body weight due to an increase in urine glucose excretion (UGE) without a significant change in total food consumption as compared to vehicle-treated rats[1].
Animal Protocol
Animal/Disease Models: Diet-induced obese, insulin resistantmice (DIO) Mice[1]
Doses: 30 mg/kg
Route of Administration: po (oral gavage); daily; 4 weeks
Experimental Results: decreased BG levels, respiratory exchange ratio, and body weight gain.

Animal/Disease Models: Male Zucker fatty (ZF) obese, insulin resistant rats[1]
Doses: 3 mg /kg
Route of Administration: po (oral gavage); daily; 3 weeks
Experimental Results: UGE was increased with no significant change in total food intake compared with that in vehicle-treated rats, leading to a decrease in body weight.
References
[1]. Liang Y, et al. Effect of canagliflozin on renal threshold for glucose, glycemia, and body weight in normal and diabetic animal models. PLoS One. 2012;7(2):e30555.
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C48H52F2O11S2
Molecular Weight
907.05
CAS #
928672-86-0
Related CAS #
Canagliflozin;842133-18-0
SMILES
S1C(C2C([H])=C([H])C(=C([H])C=2[H])F)=C([H])C([H])=C1C([H])([H])C1=C(C([H])([H])[H])C([H])=C([H])C(=C1[H])[C@@]1([H])[C@@]([H])([C@]([H])([C@@]([H])([C@@]([H])(C([H])([H])O[H])O1)O[H])O[H])O[H]
Synonyms
JNJ 28431754 hemihydrate;TA-7284 hemihydrate; JNJ 24831754;TA7284; JNJ-24831754; JNJ24831754AAA hemihydrate; JNJ24831754ZAE; TA 7284;
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: >100 mg/mL
Water:<1 mg/mL
Ethanol:>100 mg/mL
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (5.51 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (5.51 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (5.51 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


Solubility in Formulation 4: 0.5% CMC+0.25% Tween 80 :18 mg/mL

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.1025 mL 5.5124 mL 11.0248 mL
5 mM 0.2205 mL 1.1025 mL 2.2050 mL
10 mM 0.1102 mL 0.5512 mL 1.1025 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • CANAGLIFLOZIN HEMIHYDRATE

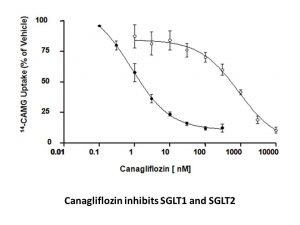

    Inhibitory effects of canagliflozin on human SGLT1 and human SGLT2. PLoS One. 2012;7(2):e30555.
