BAY-1436032

Alias: BAY-1436032; BAY 1436032; BAY1436032.
Cat No.:V4174 Purity: ≥98%
BAY-1436032 is a novel and potent pan-mutant isocitrate dehydrogenase 1 (IDH1) inhibitor both in vitro and in vivo.
BAY-1436032 Chemical Structure CAS No.: 1803274-65-8
Product category: Dehydrogenase
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
500mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

BAY-1436032 is a novel and potent pan-mutant isocitrate dehydrogenase 1 (IDH1) inhibitor both in vitro and in vivo. Neomorphic mutations in isocitrate dehydrogenase 1 (IDH1) are frequently found in several human cancer types including acute myeloid leukemia (AML) and lead to the production of high levels of the oncometabolite (R)-2-hydroxyglutarate (R-2HG). BAY1436032 specifically inhibits R-2HG production and colony growth, and induces myeloid differentiation of AML cells carrying IDH1R132H, IDH1R132C, IDH1R132G, IDH1R132L and IDH1R132S mutations. In addition, the compound impacts on DNA methylation and attenuates histone hypermethylation. Oral administration of BAY1436032 led to leukemic blast clearance, myeloid differentiation, depletion of leukemic stem cells and prolonged survival in two independent patient-derived xenograft IDH1 mutant AML mouse models. Together, BAY1436032 is highly effective against all major types of IDH1 mutant AML.

Biological Activity I Assay Protocols (From Reference)
ln Vitro
BAY-1436032 is a brand-new pan-mutant inhibitor of isocitrate dehydrogenase 1 (IDH1). In mouse hematopoietic cells expressing IDH1R132H or IDH1R132C, BAY-1436032 reduces intracellular (R)-2-hydroxyglutarate (R-2HG) synthesis with IC50 values of 60 and 45 nM, respectively. Even at dosages up to 10 μM, BAY-1436032 does not lower R-2HG levels in mouse hematopoietic cells expressing IDH2R140Q and IDH2R172K. At doses as high as 100 μM, BAY-1436032 did not impede the colony expansion of patient-derived IDH1 wild-type AML cells, but it did at 50% when it came to that growth. BAY-1436032 significantly enhanced myelomonocytic differentiation of myeloid progenitor cells in morphological assessment [1].
ln Vivo
At 150 mg/kg, long-term oral treatment of BAY-1436032 once daily showed nearly total suppression of (R)-2-hydroxyglutarate (R-2HG) synthesis. White blood cell counts in mice given vehicle treatment climbed steadily; in mice given 45 mg/kg BAY-1436032, the rate of increase was slowed; and in the 150 mg/kg group, the numbers were unchanged. Day 60 hemoglobin levels were marginally lower in the vehicle group and 45 mg/kg group than in the 150 mg/kg group, while the mice treated with BAY-1436032 at 45 mg/kg group and the vehicle group had marginally lower hemoglobin levels than the animals in the 150 mg group. Day 60 saw a significant reduction in the cohort's platelet count/kg. While animals treated with vehicles died, all mice given 150 mg/kg BAY-1436032 survived and had the lowest hCD45+ cell load in the peripheral blood until the end of observation on day 150 after the start of therapy (P<0.001). Bits have a 91-day lifespan. A 45 mg/kg dose of BAY-1436032 produced moderately expressed CD14/CD15 in mice [1].
References
[1]. Chaturvedi A, et al. Pan-mutant-IDH1 inhibitor BAY1436032 is highly effective against human IDH1 mutant acute myeloid leukemia in vivo. Leukemia. 2017 Oct;31(10):2020-2028
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C26H30F3N3O3
Molecular Weight
489.529917240143
CAS #
1803274-65-8
SMILES
O=C(O)CCC1=CC=C2N([C@H]3CC(C)(C)C[C@@H](C)C3)C(NC4=CC=C(OC(F)(F)F)C=C4)=NC2=C1
InChi Key
RNMAUIMMNAHKQR-QFBILLFUSA-N
InChi Code
InChI=1S/C26H30F3N3O3/c1-16-12-19(15-25(2,3)14-16)32-22-10-4-17(5-11-23(33)34)13-21(22)31-24(32)30-18-6-8-20(9-7-18)35-26(27,28)29/h4,6-10,13,16,19H,5,11-12,14-15H2,1-3H3,(H,30,31)(H,33,34)/t16-,19+/m0/s1
Chemical Name
3-(2-((4-(trifluoromethoxy)phenyl)amino)-1-((1R,5R)-3,3,5-trimethylcyclohexyl)-1H-benzo[d]imidazol-5-yl)propanoic acid
Synonyms
BAY-1436032; BAY 1436032; BAY1436032.
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO : ~125 mg/mL (~255.35 mM)
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (5.11 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: 2.5 mg/mL (5.11 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (5.11 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.0428 mL 10.2139 mL 20.4278 mL
5 mM 0.4086 mL 2.0428 mL 4.0856 mL
10 mM 0.2043 mL 1.0214 mL 2.0428 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • BAY-1436032

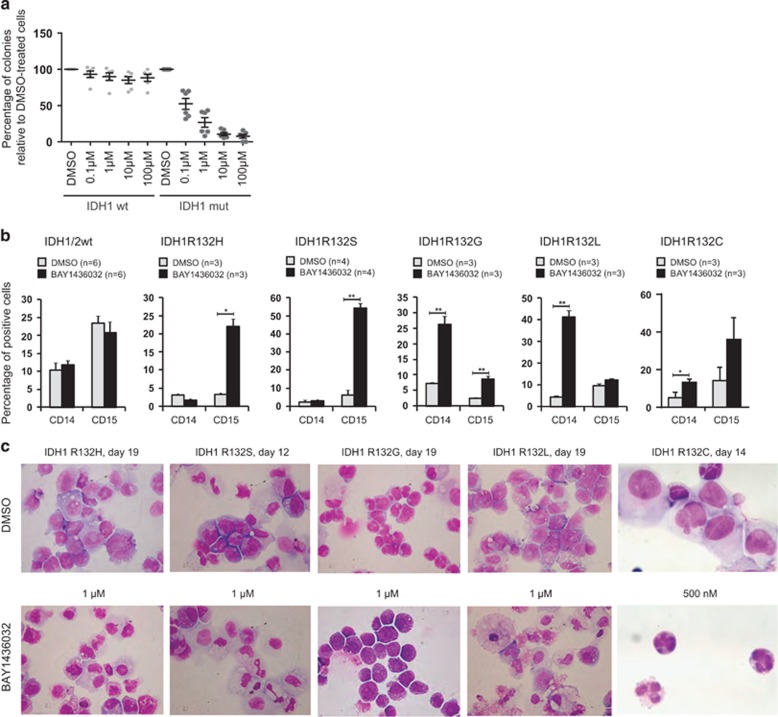

    BAY1436032 inhibits proliferation and induces myeloid differentiation in patient-derived IDH1 mutant AML cellsex vivo.Leukemia. 2017 Oct;31(10):2020-2028.

  • BAY-1436032

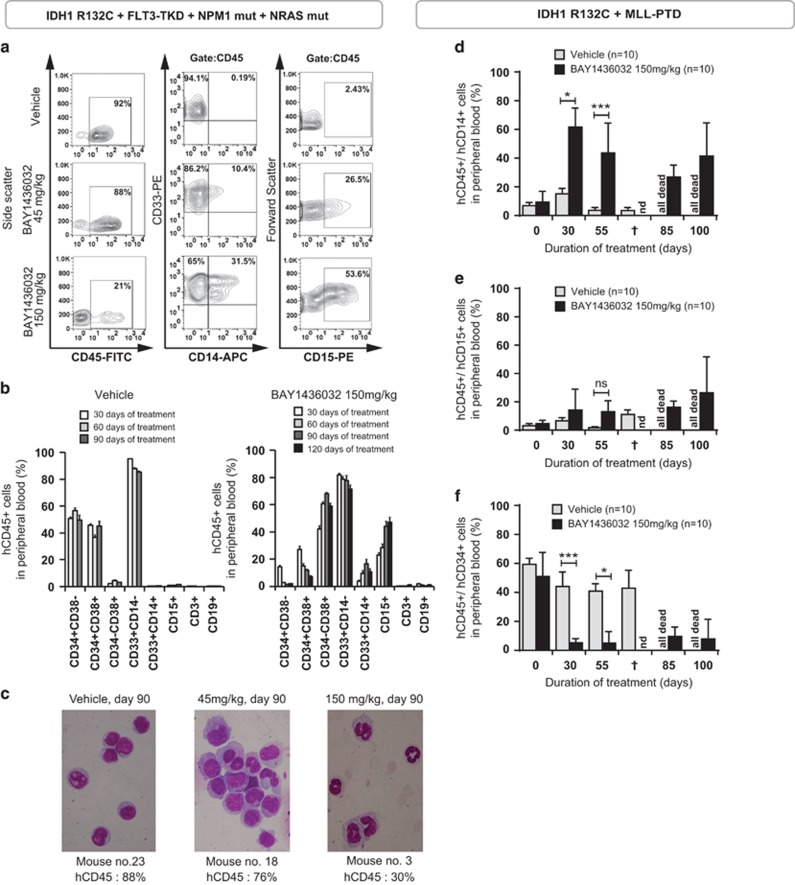

    BAY1436032 induces myeloid differentiation of IDH1R132C mutant AML cellsin vivo.Leukemia. 2017 Oct;31(10):2020-2028.

  • BAY-1436032

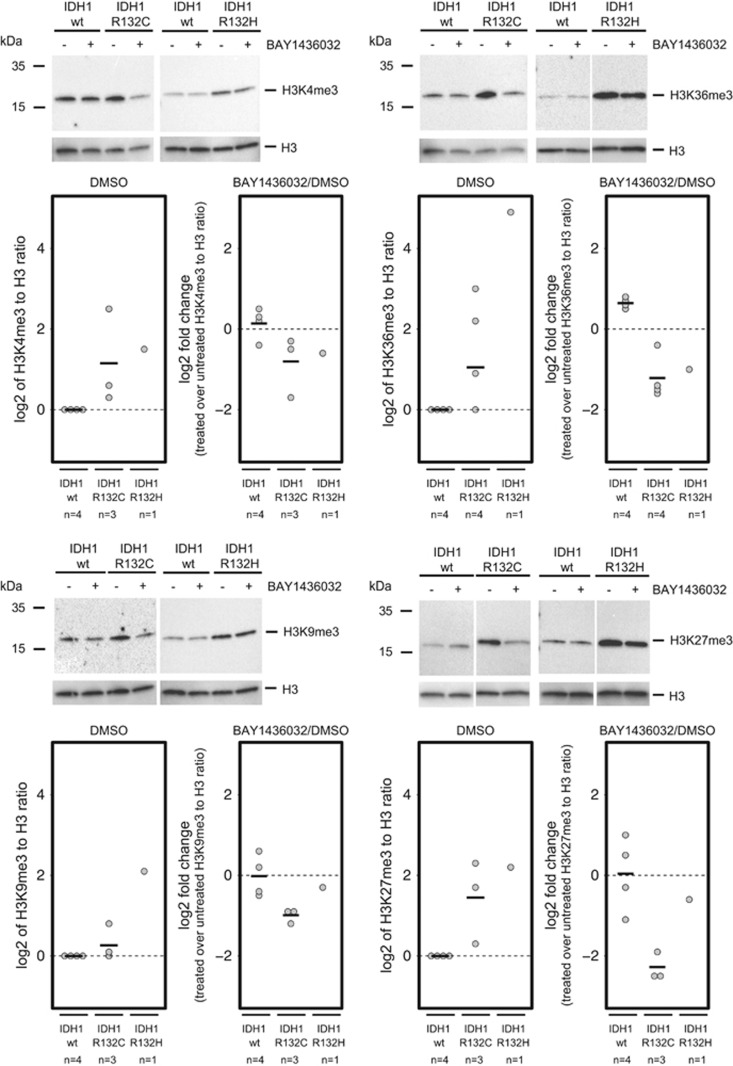

    BAY1436032 impacts on histone methylation in patient-derived IDH1R132C and IDH1R132H mutant AML cellsex vivo.
