Sapitinib (AZD-8931)

Alias: AZD 8931; Sapitinib; AZD 8931; AZD8931
Cat No.:V0567 Purity: ≥98%
Sapitinib (formerly AZD8931; AZD-8931) is an orally bioactive, reversible and ATP competitive inhibitor of multiple kinases including EGFR, ErbB2/3 with potential antitumor activity.
Sapitinib (AZD-8931) Chemical Structure CAS No.: 848942-61-0
Product category: EGFR
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
25mg
50mg
100mg
250mg
500mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
InvivoChem's Sapitinib (AZD-8931) has been cited by 1 publication
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

Sapitinib (formerly AZD8931; AZD-8931) is an orally bioactive, reversible and ATP competitive inhibitor of multiple kinases including EGFR, ErbB2/3 with potential antitumor activity. In cell-free assays, it inhibits EGFR and ErbB2/3 at IC50s of 4 nM, 3 nM, and 4 nM. In vitro, it exhibits strong anti-proliferative action against NSCLC cells.

Biological Activity I Assay Protocols (From Reference)
Targets
EGFR (IC50 = 4 nM); ErbB2 (IC50 = 4 nM); HER3 (IC50 = 4 nM)
ln Vitro
AZD8931 exhibits varying levels of potency in comparison to NSCLC and SCCHN cell lines. With a GI50 of 0.1 nM, AZD8931 exhibits high sensitivity to PC-9 cells (which have an EGFR activating mutation), while its activity against NCI-1437 cells is low, with a GI50 exceeding 10 μM. In PE/CA-PJ41, PE/CA-PJ49, DOK, and FaDu cells, AZD8931 shows greater efficacy against phospho-EGFR, phospho-erbB2, and phospho-erbB3 than either lapatinib or gefitinib does.[1]
ln Vivo
AZD8931 exhibits antitumor activity in xenografts of PC-9, BT474c, Calu-3, LoVo, and FaDu. After acute treatment, AZD8931 may lower p-Akt, Ki67 expression, and p-ERK in BT474c xenografts. Additionally, AZD8931 induces the M30 apoptosis marker. Additionally, in LoVo xenografts, AZD8931 exhibits a higher proapoptotic effect than both lapatinib and gefitinib.[1]
Enzyme Assay
Human EGFR and erbB2 intracellular kinase domains have been cloned and expressed in the baculovirus/Sf21 system. Using the ELISA method, the inhibitory activity of AZD8931 is assessed with ATP at Km concentrations (0.4 mM for erbB2 and 2 mM for EGFR).
Cell Assay
AZD8931 is tested in a panel of NSCLC and SCCHN cell lines to ascertain its antiproliferative activity against cell lines grown in vitro. AZD8931 (0.001-10 μM) is added to cells and incubated for 96 hours. After incubating the MTS Colorimetric Assay reagent for four hours, the absorbance at 490 nm is measured using a spectrophotometer to determine the viable cell count.
Animal Protocol
The mice used are severe combined immunodeficient and Swiss nude (nu/nu genotype). A 1% (v/v) solution of polyoxyethylenesorbitan monooleate (Tween 80) in deionized water is used to suspend AZD8931, GW572016, and ZD1839. Once (qd) or twice daily (bid), animals are given AZD8931 (6.25-50 mg/kg), GW572016 (100 mg/kg), ZD1839 (100-150 mg/kg), or vehicle control by oral gavage. Tumor growth characteristics dictate the duration of each study, with studies coming to an end when tumors reach less than 1 cm3. Tumor volume and percentage tumor growth inhibition are determined, and a standard t test is used to statistically analyze any changes in tumor volume (a P value of less than 0.05 is deemed statistically significant).
References

[1]. Clin Cancer Res . 2010 Feb 15;16(4):1159-69.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C23H25CLFN5O3
Molecular Weight
473.93
Exact Mass
473.16
Elemental Analysis
C, 58.29; H, 5.32; Cl, 7.48; F, 4.01; N, 14.78; O, 10.13
CAS #
848942-61-0
Related CAS #
848942-61-0 (free bade);1196531-39-1 (fumurate);
Appearance
Solid powder
SMILES
CNC(=O)CN1CCC(CC1)OC2=C(C=C3C(=C2)C(=NC=N3)NC4=C(C(=CC=C4)Cl)F)OC
InChi Key
DFJSJLGUIXFDJP-UHFFFAOYSA-N
InChi Code
InChI=1S/C23H25ClFN5O3/c1-26-21(31)12-30-8-6-14(7-9-30)33-20-10-15-18(11-19(20)32-2)27-13-28-23(15)29-17-5-3-4-16(24)22(17)25/h3-5,10-11,13-14H,6-9,12H2,1-2H3,(H,26,31)(H,27,28,29)
Chemical Name
2-[4-[4-(3-chloro-2-fluoroanilino)-7-methoxyquinazolin-6-yl]oxypiperidin-1-yl]-N-methylacetamide
Synonyms
AZD 8931; Sapitinib; AZD 8931; AZD8931
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~40 mg/mL (~84.4 mM)
Water: <1 mg/mL
Ethanol: <1 mg/mL
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (5.28 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (5.28 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (5.28 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


Solubility in Formulation 4: 30% PEG400+0.5% Tween80+5% propylene glycol: 5 mg/mL

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.1100 mL 10.5501 mL 21.1002 mL
5 mM 0.4220 mL 2.1100 mL 4.2200 mL
10 mM 0.2110 mL 1.0550 mL 2.1100 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT01284595 Completed Drug: [14C] AZD8931 Healthy AstraZeneca March 2011 Phase 1
NCT01330758 Completed Drug: AZD8931 Healthy AstraZeneca April 2011 Phase 1
NCT00637039 Completed Drug: AZD8931 Advanced Solid Malignancies AstraZeneca February 2008 Phase 1
NCT00900627 Completed Drug: AZD8931
Drug: Paclitaxel
Neoplasms
Breast Cancer
AstraZeneca June 2009 Phase 1
Phase 2
NCT00879346 Completed Drug: AZD8931 Healthy AstraZeneca March 2009 Phase 1
Biological Data
  • AZD8931 (Sapitinib)

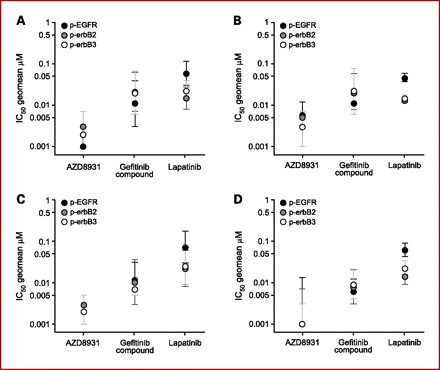

    Cellular phospho-EGFR, phospho-erbB2, and phospho-erbB3 geometric IC50 means and 95% confidence intervals for AZD8931, gefitinib, and lapatinib in the (A) PE/CA-PJ41 cell line, (B) PE/CA-PJ49 cell line, (C) DOK cell line, and (D) FaDu cell line. Clin Cancer Res. 2010 Feb 15;16(4):1159-69.

  • AZD8931 (Sapitinib)

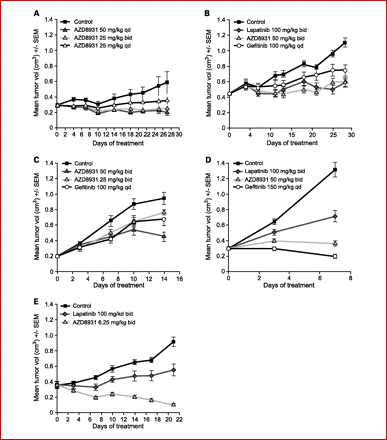

    Antitumor studies of AZD8931, gefitinib, and lapatinib using (A) BT474c, (B) Calu-3, (C) LoVo, (D) FaDu, and (E) PC-9 xenograft mouse models.

  • AZD8931 (Sapitinib)

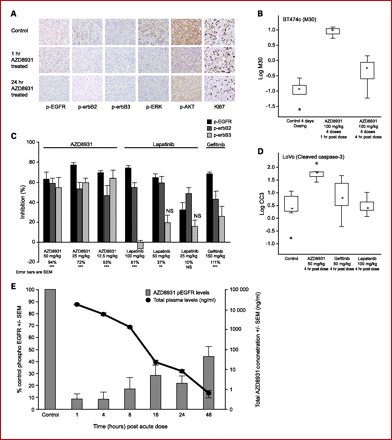

    Pharmacodynamic effects of AZD8931, lapatinib, and gefitinib.
