AZD3514

Alias: AZD3514; AZD 3514; AZD-3514.
Cat No.:V1766 Purity: ≥98%
AZD3514 (AZD-3514;AZD 3514) is a novel, potent and orally bioavailableandrogen receptor downregulatorwith potential anticancer activity.
AZD3514 Chemical Structure CAS No.: 1240299-33-5
Product category: Androgen Receptor
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
500mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

AZD3514 (AZD-3514; AZD 3514) is a novel, potent and orally bioavailable androgen receptor downregulator with potential anticancer activity. It inhibits AR with Ki of 2.2 μM and has the ability to reduce AR protein expression and thus has the potential to be used as an anticancer agent. In LNCaP and LAPC4 prostate cancer cells, AZD3514 inhibited DHT-driven proliferation of LNCaP cells in a dose-dependent way and inhibited the ligand-driven expression of AR-regulated genes PSA and TMPRSS2. Also, AZD3514 reduced AR protein expression in a dose-dependent way. AZD3514 is being studied in a Phase I clinical trial to treat patients with castrate-resistant prostate cancer.

Biological Activity I Assay Protocols (From Reference)
ln Vitro
AZD3514 (0-10 μM/L; 7 d) suppresses the growth of LNCaP and LAPC4 cells[2]. AZD3514 (0-10 μM/L; 24 h) suppresses known AR-regulated gene ligand-driven expression[2]. In LNCaPs and LAPC4s, AZD3514 (0-30 μM/L; 24 h) decreases AR protein expression[2]. In LNCaP cells, AZD3514 (1–10 μM/L; 2 h) decreases AR nuclear translocation[2].
ln Vivo
Rats' AR signaling is inhibited by AZD3514 (10-100 mg/kg; po once daily for 6 days)[2]. For 30 days, AZD3514 (50 mg/kg, po once daily) slows the growth of prostate tumors[2]. In vivo, AZD3514 (50–100 mg/kg; po once daily for three days) dramatically lowers nuclear AR protein[2].
Cell Assay
Cell Proliferation Assay [2]
Cell Types: LNCaP and LAPC4 cell lines
Tested Concentrations: 0, 0.1, 0.4, 1.1, 3.3 and 10 μM/L
Incubation Duration: 7 days
Experimental Results: Inhibited LAPC4 cells growth and dose-dependently inhibited proliferation of LNCaP cells.

Western Blot Analysis[2]
Cell Types: LNCaP and LAPC4 cell lines
Tested Concentrations: 0, 0.4, 1.1, 3.3, 10 and 30 μM/L
Incubation Duration: 0-24 hrs (hours)
Experimental Results: Dose-dependently decreased AR protein expression in LNCaPs, and diminished AR protein in LAPC4 cells with a concentration of 10 μM/L. decreased the rate of AR synthesis to reduce the concentration of AR protein.

RT-PCR[2]
Cell Types: LNCaP and LAPC4 cell lines
Tested Concentrations: 0, 0.4, 1.1, 3.3 and 10 μM/L
Incubation Duration: 24 hrs (hours)
Experimental Results: Inhibited ligand-driven expression of AR-regulated genes PSA and TMPRSS2 in both LNCaP and LAPC4 cells.
Animal Protocol
Animal/Disease Models: Intact or castrat 42- and 49-day-old Hans Wistar rats[2]
Doses: 10, 50 and 100 mg/kg
Route of Administration: po (oral gavage); 10-100 mg/kg one time/day; for 6 days
Experimental Results: Inhibited AR signaling in rats, decreased seminal vesicle weight in intact rats, and inhibited the ability of exogenous testosterone proprionate to cause an increase in seminal vesicle weight in castrated rat.

Animal/Disease Models: Male Copenhagen rats with Dunning R3327H prostate tumors[2]
Doses: 50 mg/kg
Route of Administration: po (oral gavage); 50 mg/kg one time/day; for 30 days
Experimental Results: Dramatically inhibited prostate tumor growth of rats.
References
[1]. Bradbury RH, et al. Discovery of AZD3514, a small-molecule androgen receptor downregulator for treatment of advanced prostate cancer. Bioorg Med Chem Lett. 2013 Apr 1;23(7):1945-8.
[2]. Loddick SA, et al. AZD3514: a small molecule that modulates androgen receptor signaling and function in vitro and in vivo. Mol Cancer Ther. 2013 Sep;12(9):1715-27.
[3]. Omlin A, et al. AZD3514, an oral selective androgen receptor down-regulator in patients with castration-resistant prostate cancer - results of two parallel first-in-human phase I studies. Invest New Drugs. 2015 Jun;33(3):679-90.
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C25H32F3N7O2
Molecular Weight
519.56
CAS #
1240299-33-5
Related CAS #
1240299-36-8;1240299-33-5;
SMILES
CC(N1CCN(CCOC2=CC=C(C3CCN(C4=NN5C(CC4)=NN=C5C(F)(F)F)CC3)C=C2)CC1)=O
Synonyms
AZD3514; AZD 3514; AZD-3514.
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 100 mg/mL (192.5 mM)
Water:<1 mg/mL
Ethanol:100 mg/mL (192.5 mM)
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (4.81 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (4.81 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (4.81 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.9247 mL 9.6235 mL 19.2471 mL
5 mM 0.3849 mL 1.9247 mL 3.8494 mL
10 mM 0.1925 mL 0.9624 mL 1.9247 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data
  • AZD3514

    (A-B) LNCaP cells treated with AZD3514 for 24 hours. Graph shows AR levels normalized to GAPDH and relative to the vehicle control.2013Sep;12(9):1715-27.
  • AZD3514

    (A-B) LNCaP cells grown in steroid free conditions in SILAC media containing 5% dialyzed fetal calf serum, 13C615N4 arginine and 13C6 lysine (to label proteins as “heavy”) were treated with 10 μM AZD3514 or vehicle for 24 hours, then switched to grow in SILAC media containing unlabeled arginine (to label newly synthesized protein as “light”).2013Sep;12(9):1715-27.

  • AZD3514

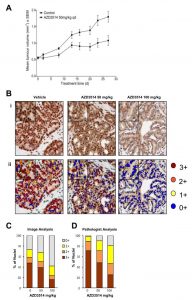

    (A-D) AZD3514 was administered by oral gavage once daily to Copenhagen rats bearing established R3327H tumors at the doses indicated. (A) tumor volumes are plotted against time.2013Sep;12(9):1715-27.
