RO4987655

Alias: CH4987655; CH-4987655; CH 4987655; RO4987655; RO-4987655; RO 4987655
Cat No.:V3012 Purity: ≥98%
PD 169316 is a novel potent, cell-permeable and specific/selective inhibitor of p38 MAPK kinase with IC50 value of 89 nM.
RO4987655 Chemical Structure CAS No.: 874101-00-5
Product category: MEK
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description
RO4987655 (also known as CH-4987655) is a novel, orally bioavailable and specific small molecule inhibitor of MEK kinase with an IC50 of 5.2 nM for MEK1/MEK2. It targets MAP2K1/MEK1, a protein kinase with potential anti-cancer activity. With an in vitro MEK1/2 IC50 of 5.2 nmol/L, it effectively prevents the activation of the mitogen-activated protein kinase signaling pathway and the growth of tumor cells. In xenograft models, oral administration of CH4987655 as a single agent caused total tumor regressions. Clinical trials found that doses of 0.5, 1, 2, 3, and 4 mg were secure and well tolerated. No clinically significant safety event was noticed.
Biological Activity I Assay Protocols (From Reference)
Targets
MEK1 (IC50 = 5.2 nM); MEK2 (IC50 = 5.2 nM)
ln Vitro
RO4987655 potently inhibits mitogen-activated protein kinase signaling pathway activation and tumor cell growth, with an in vitro IC50 of 5.2 nM for inhibition of MEK1/2[1]. With an IC50 value of 0.0065 μM, RO4987655 inhibits the proliferation of NCI-H2122 cells in a dose-dependent manner. At doses ranging from 0.1 to 1.0 μM, RO4987655 suppresses pERK1/2 as early as 2 hours into the treatment period[2].
ln Vivo
In xenograft models, RO4987655 (CH4987655) administered orally as a single agent completely eradicates tumors. With a tmax of under one hour, RO4987655 is rapidly absorbed. From 0.5 to 4 mg, exposures are dose-proportional. With a terminal t1/2 of under 25 hours, the disposition is biphasic. Low intersubject variability is observed; the range for Cmax and area-under-the-curve (AUC) is respectively 9%–23% and 14%–25%. At higher doses, pERK inhibition is more than 80% inhibited and exposure dependent. An inhibitory Emax model (Emax ~100%; IC50 40.6 ng/mL) is used in nonlinear mixed-effect modeling to describe the pharmacokinetic-pharmacodynamic relationship[1]. Randomly assigned study groups are made up of female athymic nude mice. Using a digital caliper and on days 0, 1, and 3 with doses of 1.0, 2.5, and 5.0 mg/kg RO4987655, the tumor size is estimated. Over this period, the vehicle treatment does not stop the NCI-H2122 tumor xenograft from growing. On the other hand, treatment with RO4987655 causes tumor growth inhibition (TGI) of 119% at 1.0 mg/kg, 145% at 2.5 mg/kg, and 150% at 5.0 mg/kg on day 3. PET imaging demonstrates that [18F] FDG uptake in the xenografts decreases 24 hours (day 1) after RO4987655 administration[2].
Enzyme Assay
RO4987655 (also known as CH-4987655) is a novel, orally bioavailable and specific small molecule inhibitor of MEK kinase with an IC50 of 5.2 nM for MEK1/MEK2. Mitogen-activated protein kinase kinase 1 (MAP2K1/MEK1), which may have antineoplastic activity, is the target of this medication. With an in vitro IC50 for MEK1/2 inhibition of 5.2 nmol/L, it effectively prevents the activation of the mitogen-activated protein kinase signaling pathway and the growth of tumor cells.
Cell Assay
The heat-inactivated fetal bovine serum and L-glutamine are maintained at the indicated concentrations in the designated media for the human lung adenocarcinoma cell line NCI-H2122. At 37 degrees Celsius and 5% CO2, cells develop. Viable cells were counted using the Cell Counting Kit-8 after cells were exposed to RO4987655 at different concentrations (0.00001, 0.001, 0.1, and 10 μM) for 72 hours in 96-well plates[2].
Animal Protocol
Mice: Mice that are athymic and naked in females It uses balb nu/nu that are 5 to 6 weeks old (18 to 22 g). Balb-nu/nu mice receive a subcutaneous injection of NCI-H2122 cells ((4×106/mouse). Mice are randomized into groups with comparable mean tumor volumes at the beginning of the study once tumors are established (100 to 200 mm3). On days 0, 1, and 3 with doses of 1.0, 2.5, and 5.0 mg/kg RO4987655, PET scans are used to estimate the tumor size. Days 0 (baseline), 1, 2, 3, and 9 of [18F] FDG-PET imaging are used to measure tumor volume and body weight. Calculations are made to determine tumor growth inhibition[2].
References

[1]. The safety, tolerability, pharmacokinetics, and pharmacodynamics of single oral doses of CH4987655 in healthy volunteers: target suppression using a biomarker. Clin Cancer Res. 2009 Dec 1;15(23):7368-74.

[2]. Tegnebratt T, et al. Evaluation of efficacy of a new MEK inhibitor, RO4987655, in human tumor xenografts by [(18)F] FDG-PET imaging combined with proteomic approaches. EJNMMI Res. 2014 Dec;4(1):34.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C20H19F3IN3O5
Molecular Weight
565.28
Exact Mass
565.0322
Elemental Analysis
C, 42.49; H, 3.39; F, 10.08; I, 22.45; N, 7.43; O, 14.15
CAS #
874101-00-5
Related CAS #
874101-00-5
Appearance
Solid powder
SMILES
C1CC(=O)N(OC1)CC2=CC(=C(C(=C2F)F)NC3=C(C=C(C=C3)I)F)C(=O)NOCCO
InChi Key
FIMYFEGKMOCQKT-UHFFFAOYSA-N
InChi Code
InChI=1S/C20H19F3IN3O5/c21-14-9-12(24)3-4-15(14)25-19-13(20(30)26-31-7-5-28)8-11(17(22)18(19)23)10-27-16(29)2-1-6-32-27/h3-4,8-9,25,28H,1-2,5-7,10H2,(H,26,30)
Chemical Name
3,4-difluoro-2-(2-fluoro-4-iodoanilino)-N-(2-hydroxyethoxy)-5-[(3-oxooxazinan-2-yl)methyl]benzamide
Synonyms
CH4987655; CH-4987655; CH 4987655; RO4987655; RO-4987655; RO 4987655
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ≥ 40 mg/mL
Water: <1 mg/mL
Ethanol: <1 mg/mL
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (4.42 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (4.42 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 2.5 mg/mL (4.42 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


Solubility in Formulation 4: 10% DMSO+ 40% PEG300+ 5% Tween-80+ 45% saline: ≥ 2.5 mg/mL

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.7690 mL 8.8452 mL 17.6903 mL
5 mM 0.3538 mL 1.7690 mL 3.5381 mL
10 mM 0.1769 mL 0.8845 mL 1.7690 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT00817518 Completed Drug: RO4987655 Neoplasms Hoffmann-La Roche January 2009 Phase 1
Biological Data
  • RO4987655

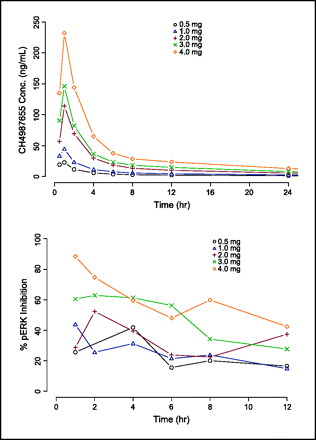

    Top, mean CH4987655 plasma concentration versus time profiles in healthy volunteers by dose groups (n = 6 treated per group) up to 24 h;2009 Dec 1;15(23):7368-74.

  • RO4987655

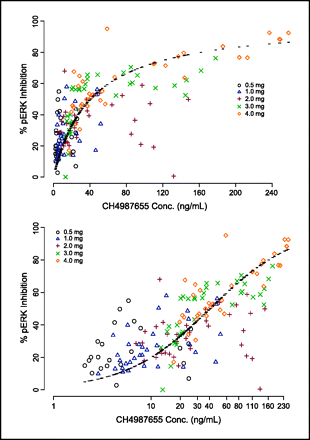

    CH4987655 plasma concentration versus %pERK inhibition relationship as characterized by an Emax model.2009 Dec 1;15(23):7368-74.

  • RO4987655

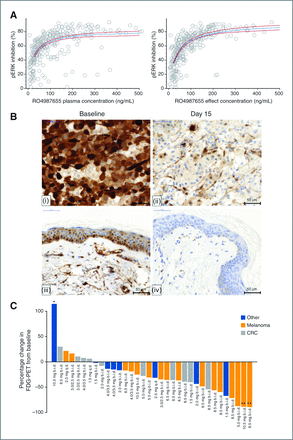

    A, RO4987655 plasma and effect concentrations versus PBMC pERK inhibition (all doses)2012 Sep 1;18(17):4794-805. Epub 2012 Jul 5.
