Cat No.:V10658 Purity: ≥98%
R243 (R-243) is a novel and potent inhibitor of CCR8 signaling withantinociceptive and anti-inflammatory activity.
R243
R243 Chemical Structure CAS No.: 688352-84-3
Product category: New12
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Product Description

R243 (R-243) is a novel and potent inhibitor of CCR8 signaling with antinociceptive and anti-inflammatory activity. It inhibits CCR8 signaling and chemotaxis, inhibits CCL1-induced Ca2+ flux and CCL1-driven peritoneal macrophages aggregation. It also reduced secretion of cytokines such as TNF-α, IL-6, and most strikingly IL-10 from WT PMφ (peritoneal macrophages), but not BMMφ (bone marrow-derived macrophages).

Biological Activity I Assay Protocols (From Reference)
ln Vitro
CCL1-induced Ca2+ flow and CCL1-driven peritoneal macrophage accumulation are antagonistic to CCR8 in R243 [1]. R243 reduces the amount of TNF-α, IL-6, and IL-10 that wild-type peritoneal macrophages (WT PMφ) secrete [1]. After lipopolysaccharide (LPS) treatment, R243-treated WT PMφ demonstrated reduction of NF-κB signaling and c-jun N-terminal kinase activity compared to WT PMφ [1].
ln Vivo
R243 (0.1-1 mg/kg; intraperitoneal injection; once; male Swiss mice) therapy decreased CCL1-induced analgesia in a dose-dependent manner [2].
Animal Protocol
Animal/Disease Models: Male Swiss mice (7-9 weeks old) were injected with CCL1[2]
Doses: 0.1 mg/kg, 0.3mg/kg, 1 mg/kg
Route of Administration: intraperitoneal (ip) injection;
Experimental Results:CCL1 (10 μg/kg ; 1 h; sc)-induced analgesia was dose-dependently inhibited.
References

[1]. Chemokine Receptor CCR8 Is Required for Lipopolysaccharide-Triggered Cytokine Production in Mouse Peritoneal Macrophages. PLoS One. 2014 Apr 8;9(4):e94445.

[2]. The Systemic Administration of the Chemokine CCL1 Evokes Thermal Analgesia in Mice Through the Activation of the Endocannabinoid System. Cell Mol Neurobiol. 2019 Nov;39(8):1115-1124.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C21H27NO4
Molecular Weight
357.443386316299
Exact Mass
357.194
Elemental Analysis
C, 70.56; H, 7.61; N, 3.92; O, 17.90
CAS #
688352-84-3
PubChem CID
2962888
Appearance
White to off-white solid powder
LogP
3.9
Hydrogen Bond Donor Count
0
Hydrogen Bond Acceptor Count
5
Rotatable Bond Count
4
Heavy Atom Count
26
Complexity
499
Defined Atom Stereocenter Count
0
InChi Key
JJMLDSFDOODCIR-UHFFFAOYSA-N
InChi Code
InChI=1S/C21H27NO4/c1(2-26-21-8-14-3-15(9-21)5-16(4-14)10-21)22-11-17-6-19-20(25-13-24-19)7-18(17)23-12-22/h6-7,14-16H,1-5,8-13H2
Chemical Name
7,8-Dihydro-7-[2-(tricyclo[3.3.1.1(3,7)]dec-1-yloxy)ethyl]-6H-1,3-dioxolo[4,5-g][1,3]benzoxazine
Synonyms
R-243 R243 R 243
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO : ~125 mg/mL (~349.71 mM)
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.08 mg/mL (5.82 mM) (saturation unknown) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.08 mg/mL (5.82 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 20.8 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.7977 mL 13.9884 mL 27.9767 mL
5 mM 0.5595 mL 2.7977 mL 5.5953 mL
10 mM 0.2798 mL 1.3988 mL 2.7977 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT05670483 Recruiting Device: Use Of APRV mode of Ventilation
Device: Use of conventional Synchronized Intermittent
Mandatory Ventilation (SIMV) volume control mode
Morbid Obesity
Pulmonary Atelectasis
Pulmonary Complication
Ain Shams University 2022-12-03 Not Applicable
Biological Data

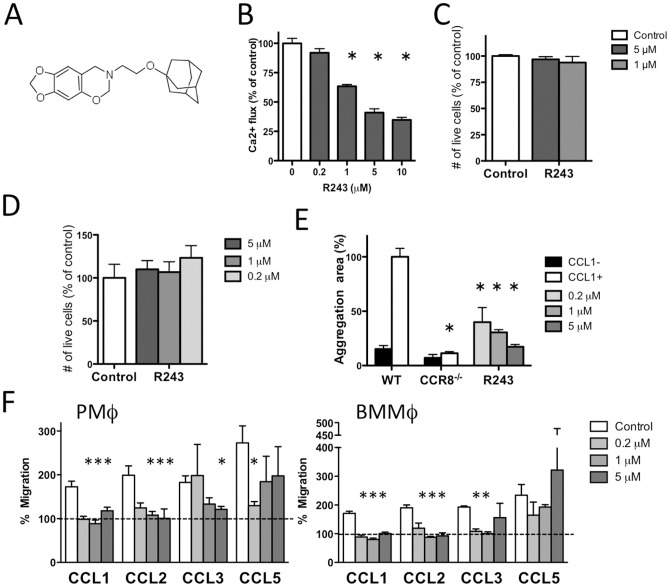

  • Figure 2. Small molecule R243 inhibits CCR8 signaling and chemotaxis.(A) Structure of R243. (B) R243 inhibition of CCL1-induced Ca2+ flux in CCR8-CHO cells. Fluorescence signal value is shown as percent of those cells treated with CCL1+0.1% DMSO (vehicle). Results are expressed as mean plus standard deviation (SD) from six assays for each condition. *Statistically significant difference from 0 (without R243) as determined by an unpaired two-tailed t test. (C) CCR8-CHO cells were cultured with 1 or 5 μM of R243 for 18 h, and the number of living cells was measured by WST assay. Results are expressed as mean plus SD of three assays. (D) PMφ were cultured for 24 h in the presence of indicated concentration of R243 and harvested with trypsin/EDTA. The numbers of living cells were counted using trypan-blue exclusion. Results are expressed as mean plus SD of three assays. (E) CIMA assay. WT or CCR8-/- PMφ were cultured on mesothelial cell monolayers with CCL1 for 24 h with various concentrations of R243. The aggregation area was measured and is shown as percent of that induced with CCL1 (CCL1+). Results are expressed as mean plus SD of five assays. *Statistically significant difference from CCL1-treated WT cells as determined by an unpaired two-tailed t test. [1].Chemokine Receptor CCR8 Is Required for Lipopolysaccharide-Triggered Cytokine Production in Mouse Peritoneal Macrophages. PLoS One. 2014 Apr 8;9(4):e94445.

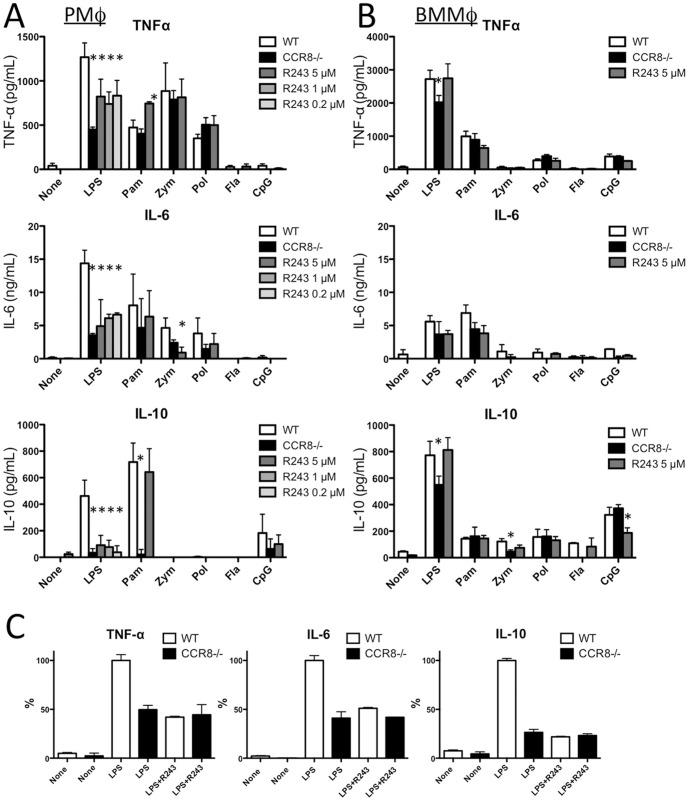

  • Figure 3. R243 inhibited LPS-induced cytokine production by mouse PMφ.(A) PMφ or (B) BMMφ were collected from naïve WT or CCR8-/- mice. WT cells were also treated with indicated concentration of R243 and cultured for cytokine assay as in Figure 1. (C) PMφ form naïve WT or CCR8-/- mice was stimulated with LPS as above in the presence or absence of R243 (5 μM) for cytokine assay. Results are shown as % of cytokine level of LPS-stimulated WT PMφ without R243. Results are presented as mean plus standard deviation (SD) of three assays. *Statistically significant difference between WT and CCR8-/- cells (Mann-Whitney test). In (C), there was no statistically significant difference among the values of LPS plus CCR8-/- PMφ with R243, LPS plus CCR8-/- PMφ without R243 and LPS plus WT PMφ with R243 in each cytokine assay.[1].Chemokine Receptor CCR8 Is Required for Lipopolysaccharide-Triggered Cytokine Production in Mouse Peritoneal Macrophages. PLoS One. 2014 Apr 8;9(4):e94445.

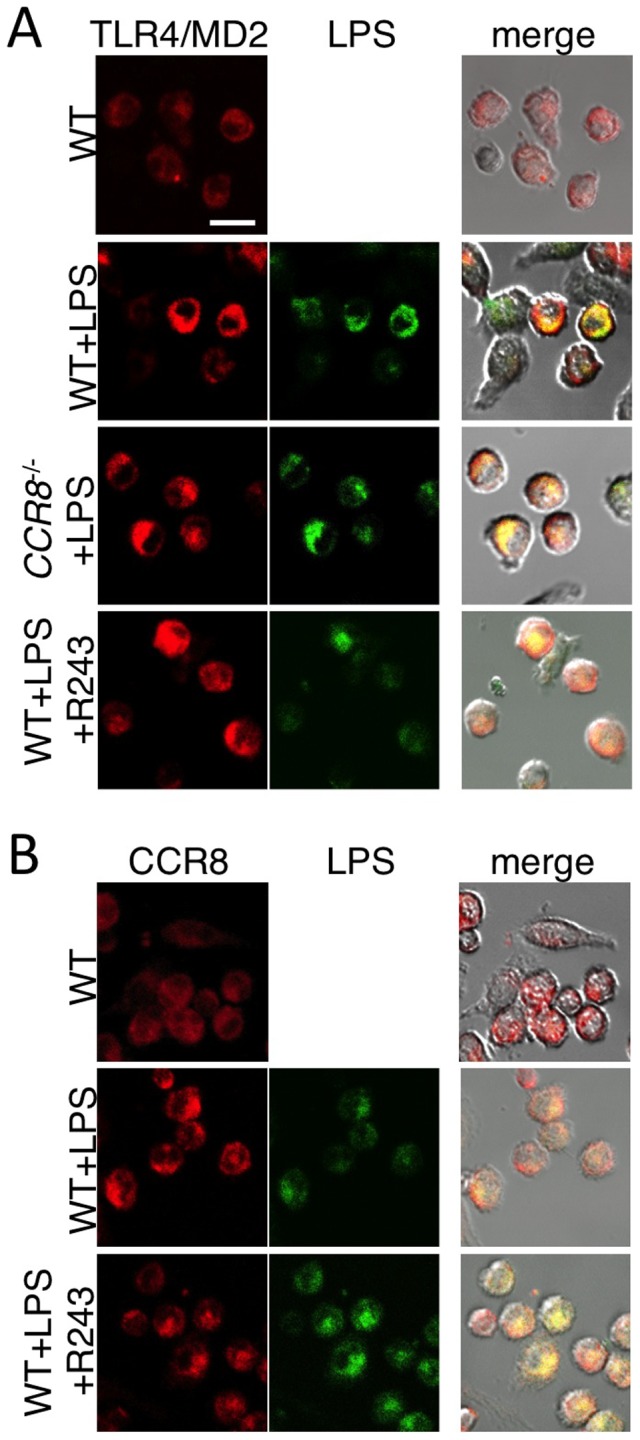

  • Figure 4. Localization of TLR4 and LPS in WT, CCR8-/-, and R243-treated PMφ. (A) WT PMφ, CCR8-/- PMφ or WT PMφ in the presence of R243 (5 μM) were stimulated with or without FITC-conjugated LPS (1 mg/mL) for 45 min and stained with biotin-conjugated anti-TLR4/MD2 and TRITC (red)-streptavidin. (B) WT PMφ were stimulated with FITC (green)-conjugated LPS, as in panel A, with or without R243 (5 μM) and stained with anti-CCR8 antibody and anti-sheep IgG-conjugated with Texas Red (red). Fluorescent images were merged and overlaid on the differential interference contrasted image. Bar = 20 μm.[1].Chemokine Receptor CCR8 Is Required for Lipopolysaccharide-Triggered Cytokine Production in Mouse Peritoneal Macrophages. PLoS One. 2014 Apr 8;9(4):e94445.
