Brigatinib (AP26113)

Alias: AP-26113; AP 26113; Brigatinib-analog; AP26113; Brigatinib; Alunbrig.
Cat No.:V0607 Purity: ≥98%
Brigatinib (formerly AP26113;AP-26113; ALK-IN-1; trade name:Alunbrig) is an orally bioavailable, FDA-approved and selective ALK (anaplastic lymphoma kinase) inhibitor with potential antineoplastic activity.
Brigatinib (AP26113) Chemical Structure CAS No.: 1197953-54-0
Product category: ALK
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Product Description

Brigatinib (formerly AP26113; AP-26113; ALK-IN-1; trade name: Alunbrig) is an orally bioavailable, FDA-approved and selective ALK (anaplastic lymphoma kinase) inhibitor with potential antineoplastic activity. In a cell-free assay, it inhibits ALK with an IC50 of 0.62 nM. In 2017, the FDA approved brgatinib for the treatment of patients with metastatic non-small cell lung cancer (NSCLC) that is positive for anaplastic lymphoma kinase (ALK), who have progressed or are intolerant to crizotinib. It was shown that brgatinib could overcome the L1196M mutation-mediated crizotinib resistance. A tyrosine kinase receptor called anaplastic lymphoma kinase (ALK) has been linked to a number of solid and hematologic malignancies. ALK mutations are found in roughly 5–7% of cases of neuroblastoma; however, in the group of patients who relapse, the percentage of ALK-positive patients rises noticeably. An analog of AP26113 binds to EGFR and its mutant forms, inhibiting EGFR as well as ALK kinase and ALK fusion proteins. This inhibits the signaling pathways of ALK kinase and EGFR kinase, which in turn prevents tumor cell growth in tumor cells that are vulnerable to it. Currently undergoing evaluation in a global phase 2 registration trial, brgatinib is the most clinically advanced phosphine oxide-containing drug candidate to date.

Biological Activity I Assay Protocols (From Reference)
Targets
ALK (IC50 = 0.37 nM); ROS1 (IC50 = 1.9 nM); FLT3 (IC50 = 2.1 nM); IGF1R (IC50 = 24.9 nM); EGFR(C797S/del19) (IC50 = 39.9 nM)
ln Vitro

Brigatinib significantly reduces the in vitro kinase activity of all five tested mutant variants, including G1202R (IC50, 0.6-6.6 nM), and ALK (IC50, 0.6 nM). Only 11 more native or mutant kinases with an IC50 <10 nM are inhibited by brentinib, indicating a high degree of selectivity. These consist of FLT3, ROS1, and the mutant forms of EGFR (L858R; IC50, 1.5-2.1 nM) and FLT3 (D835Y). Brigatinib does not inhibit MET (IC50 >1000 nM), but it shows more moderate activity against native EGFR, IGF1R, and INSR (IC50, 29-160 nM), as well as EGFR with a T790M resistance mutation (L858R/T790M). Brigatinib inhibits ALK and ROS1 in cellular assays, with IC50 values of 14 and 18 nM, respectively. Brigatinib inhibits EGFR and FLT3 mutant variants with 15–35 fold lower potency (IC50, 211-489 nM) and inhibits FLT3 and IGF-1R with about an 11-fold lower potency (IC50, 148–158 nM). Using GI50 values ranging from 503 to 2,387 nM, brentinib inhibits the growth of three ALK-negative ALCL and NSCLC cell lines[1]. With an IC50 of 75.27 ± 8.89 nM, brentinib inhibits ALK activity and stops the growth of ALK-dependent neuroblastoma cell lines. Both the ALK-I1171N and the ALK-G1269A mutant receptors are inhibited by brentinib at 10 and 4 nM, respectively[3].

ln Vivo
Brigatinib (10, 25, or 50 mg/kg once daily, p.o.) causes a dose-dependent inhibition of tumor growth in ALK+ Karpas-299 (ALCL) and H2228 (NSCLC) xenograft mouse models. Comparing brentinib to PF-02341066, mice with ALK+ brain tumors have a significantly higher survival rate[1]. A mouse model of non-small cell lung cancer showed tumor regressions in response to bogatinib (10, 25, 50 mg/kg, p.o.) demonstrating dose-dependent antitumor activity[2].
Enzyme Assay
A HotSpotSM kinase profile of 289 kinases is carried out in vitro. The experiment is carried out with brigatinib concentrations ranging from 0.05 nM to 1 μM in the presence of 10 μM [33P]-ATP.
Cell Assay
The specified inhibitors are serially diluted and added to each well containing 15,000 cells. Resazurin measures the viability of the cells after 72 hours. By fitting data to an equation of log (inhibitor concentration) vs. normalized response (variable slope), IC50 values are determined using GraphPad Prism 6.0. Every experiment is carried out in two copies and at least three times.
Animal Protocol
Mice: (1) Female SCID/beige mice, aged eight to ten weeks, receive intravenous injections of 5x106 H3122 cells each. After the tumor size reaches approximately 300 mm3 on day zero, the mice are randomized into ten treatment groups. Treatments are taken orally at a dose volume of 10 mL/kg for a maximum of 21 days in a row. Tumors under the skin are measured twice or three times a week. The formula (L×W2)/2 is used to calculate the tumor volume (in mm3). The animal is put to sleep by CO2 asphyxiation when a tumor weighs 10% of its body weight. (2) Female SCID/beige mice, aged eight to ten weeks, receive subcutaneous injections of 2.5 ×106 Karpas-299 cells per mouse. After the tumors reach approximately 180 mm3 on day zero, the mice are randomly assigned to one of ten treatment groups. Oral treatment is given for 14 days in a row at a dose volume of 10 mL/kg. The measurement and computation of tumor volume follow the guidelines for the H3122 model.
References

[1]. The Potent ALK Inhibitor Brigatinib (AP26113) Overcomes Mechanisms of Resistance to First- and Second-Generation ALK Inhibitors in Preclinical Models. Clin Cancer Res. 2016 Nov 15;22(22):5527-5538.

[2]. Discovery of Brigatinib (AP26113), a Phosphine Oxide-Containing, Potent, Orally Active Inhibitor of Anaplastic Lymphoma Kinase. J Med Chem. 2016 May 26;59(10):4948-64.

[3]. Brigatinib, an anaplastic lymphoma kinase inhibitor, abrogates activity and growth in ALK-positive neuroblastoma cells, Drosophila and mice. Oncotarget. 2016 May 17;7(20):29011-22.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C₂₉H₃₉CLN₇O₂P
Molecular Weight
584.09
Exact Mass
583.26
Elemental Analysis
C, 59.63; H, 6.73; Cl, 6.07; N, 16.79; O, 5.48; P, 5.30
CAS #
1197953-54-0
Appearance
Light yellow solid powder
SMILES
CN1CCN(CC1)C2CCN(CC2)C3=CC(=C(C=C3)NC4=NC=C(C(=N4)NC5=CC=CC=C5P(=O)(C)C)Cl)OC
InChi Key
AILRADAXUVEEIR-UHFFFAOYSA-N
InChi Code
InChI=1S/C29H39ClN7O2P/c1-35-15-17-37(18-16-35)21-11-13-36(14-12-21)22-9-10-24(26(19-22)39-2)33-29-31-20-23(30)28(34-29)32-25-7-5-6-8-27(25)40(3,4)38/h5-10,19-21H,11-18H2,1-4H3,(H2,31,32,33,34)
Chemical Name
5-chloro-4-N-(2-dimethylphosphorylphenyl)-2-N-[2-methoxy-4-[4-(4-methylpiperazin-1-yl)piperidin-1-yl]phenyl]pyrimidine-2,4-diamine
Synonyms
AP-26113; AP 26113; Brigatinib-analog; AP26113; Brigatinib; Alunbrig.
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~45 mg/mL (~85.1 mM)
Water: <1 mg/mL
Ethanol: ~106 mg/mL (~200.4 mM)
Solubility (In Vivo)
NMP+polyethylene glycol 300 (10+90, v+v): 1 mg/mL
 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 1.7121 mL 8.5603 mL 17.1206 mL
5 mM 0.3424 mL 1.7121 mL 3.4241 mL
10 mM 0.1712 mL 0.8560 mL 1.7121 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT04223596 Active
Recruiting
Drug: Brigatinib Lung Cancer
NSCLC
Fundación GECP May 4, 2020 Phase 2
NCT03535740 Active
Recruiting
Drug: Brigatinib ALK-positive Advanced NSCLC Ariad Pharmaceuticals January 31, 2019 Phase 2
NCT03596866 Active
Recruiting
Drug: Brigatinib
Drug: Alectinib
ALK+ Advanced NSCLC Takeda April 19, 2019 Phase 3
NCT04074993 Active
Recruiting
Drug: Brigatinib Non Small Cell Lung Cancer JI-YOUN HAN May 15, 2020 Phase 2
NCT05361564 Not yet recruiting Drug: Brigatinib Non-small Cell Lung Cancer Yonsei University June 2022 Phase 2
Biological Data
  • AP26113

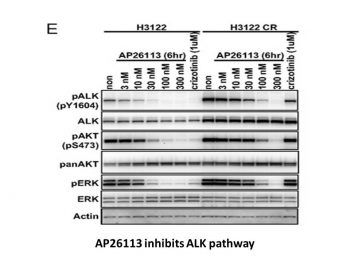

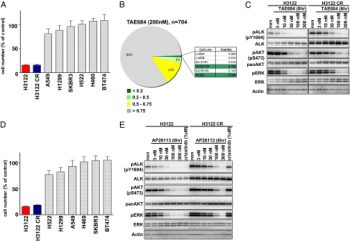

    Two different ALK kinase inhibitors, NVP-TAE684 and AP26113, overcome crizotinib resistance in H3122 CR cells. Proc Natl Acad Sci U S A. 2011 May 3; 108(18): 7535–7540.


    AP26113

  • AP26113

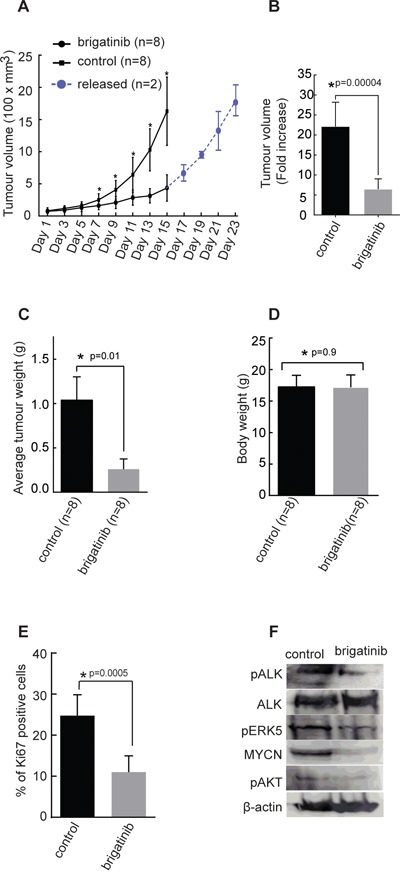

    Effect of brigatinib in a xenograft neuroblastoma model.2016 May 17;7(20):29011-22.

  • AP26113

    Effect of brigatinib on ALK gain-of-function rough eye phenotypes in aDrosophilaALK model.2016 May 17;7(20):29011-22.
