AZ 960

Alias:
Cat No.:V0334 Purity: ≥98%
AZ 960 (AZ-960) is a novel, potent, selective and ATP competitive JAK2 (janus kinase) inhibitor with potential antitumor activity.
AZ 960 Chemical Structure CAS No.: 905586-69-8
Product category: JAK
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
1mg
5mg
10mg
25mg
50mg
100mg
250mg
Other Sizes
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text



  • Business Relationship with 5000+ Clients Globally
  • Major Universities, Research Institutions, Biotech & Pharma
  • Citations by Top Journals: Nature, Cell, Science, etc.
Top Publications Citing lnvivochem Products
Purity & Quality Control Documentation

Purity: ≥98%

Product Description

AZ 960 (AZ-960) is a novel, potent, selective and ATP competitive JAK2 (janus kinase) inhibitor with potential antitumor activity. It inhibits JAK2 with an IC50 and Ki of<3 nM and 0.45 nM, and displays 3-fold selectivity for JAK2 over JAK3. It shows potent in vitro antiproliferative activity and high in vivo antitumor efficacy. In recent studies, AZ960 demonstrates potential anti-cancer activity against adult T-cell leukemia (ATL), an aggressive malignancy of CD4+ T lymphocytes, by effectively inducing growth arrest and apoptosis in human T-cell lumphotropic virus type 1 (HTLV-1) infected T cells.

Biological Activity I Assay Protocols (From Reference)
ln Vitro
Jak2 kinase is inhibited by AZ960 at a Ki of 0.45 nM. Z960 has significantly less activity against TYK2, Jak1, and 3. AZ960 has an IC50 of about 0.1 μM and is active against various kinases, including as FAK, TrkA, and Aurora-A. In human T-cell lymphotropic virus type 1, HTLV-1-infected T cells (MT-1 and MT-2), AZ960 efficiently induces growth arrest and death while downregulating the phosphorylated versions of Jak2 and Bcl-2 family proteins, including Bcl-2 and Mcl-1[2]. In recently isolated acute myeloid leukemia cells, AZ960 efficiently suppresses clonal proliferation and triggers apoptosis, which is linked to caspase 3 cleavage and downregulation of the anti-apoptotic Bcl-xL protein [1]. The AZ960 Ki for T. The value of TbERK8, or Brucei extracellular signal-regulated kinase 8, is 1.25 μM. With an IC50 of 120 nM, it inhibits TbERK8[3].
ln Vivo

Animal Protocol


References
[1]. Ikezoe T, et al. Expression of p-JAK2 predicts clinical outcome and is a potential molecular target of acute myelogenous leukemia. Int J Cancer. 2011 Nov 15;129(10):2512-21.
[2]. Gozgit JM, et al. Effects of the JAK2 inhibitor, AZ960, on Pim/BAD/BCL-xL survival signaling in the human JAK2 V617F cell line SET-2. J Biol Chem. 2008 Nov 21;283(47):32334-43.
[3]. Yang J, et al. AZ960, a novel Jak2 inhibitor, induces growth arrest and apoptosis in adult T-cell leukemia cells. Mol Cancer Ther. 2010 Dec;9(12):3386-95.
[4]. Valenciano AL, et al. Discovery and antiparasitic activity of AZ960 as a Trypanosoma brucei ERK8 inhibitor. Bioorg Med Chem. 2016 Oct 1;24(19):4647-51
These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C18H16F2N6
Molecular Weight
354.36
CAS #
905586-69-8
Related CAS #
905586-69-8
SMILES
FC1C([H])=C(C#N)C(=NC=1N([H])C1C([H])=C(C([H])([H])[H])N([H])N=1)N([H])[C@@]([H])(C([H])([H])[H])C1C([H])=C([H])C(=C([H])C=1[H])F
Synonyms

Synonym:A Z960; AZ-960; AZ960.

Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: 71 mg/mL (200.4 mM)
Water:<1 mg/mL
Ethanol: 3 mg/mL (8.5 mM)
Solubility (In Vivo)
Solubility in Formulation 1: ≥ 2.5 mg/mL (7.05 mM) (saturation unknown) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: ≥ 2.5 mg/mL (7.05 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 25.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.

 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.8220 mL 14.1099 mL 28.2199 mL
5 mM 0.5644 mL 2.8220 mL 5.6440 mL
10 mM 0.2822 mL 1.4110 mL 2.8220 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT02768207 Completed Drug: Cobimetinib
Drug: Vemurafenib
Metastatic Melanoma Hoffmann-La Roche May 23, 2016 Phase 2
NCT01667419 Completed
Has Results
Drug: Vemurafenib
Drug: Placebo
Melanoma Hoffmann-La Roche September 24, 2012 Phase 3
NCT01307397 Completed
Has Results
Drug: Vemurafenib Malignant Melanoma Hoffmann-La Roche March 1, 2011 Phase 3
NCT01909453 Active, not recruiting
Has Results
Drug: LGX818
Drug: MEK162
Melanoma Pfizer December 13, 2013 Phase 3
Biological Data
  • AZ 960

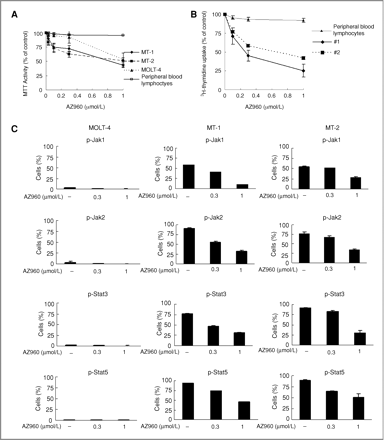

    AZ960 inhibits the growth of HTLV-1–infected T cells and freshly isolated ATL cells.Mol Cancer Ther.2010 Dec;9(12):3386-95.

  • AZ 960

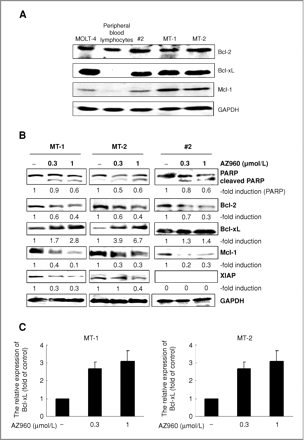

    The levels of Bcl-2 family. A, Western blot analysis.Mol Cancer Ther.2010 Dec;9(12):3386-95.

  • AZ 960

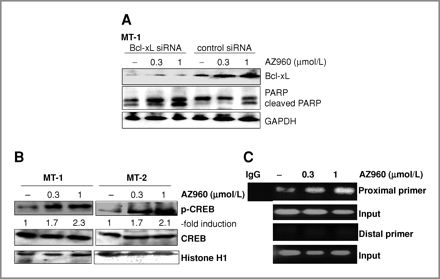

    Knockdown of Bcl-xL by siRNA sensitizes MT-1 cells to AZ960-induced apoptosis.Mol Cancer Ther.2010 Dec;9(12):3386-95.
