Product Description
ARCC-4 is a nanomolar androgen receptor (AR) degrader based on PROTAC technology with a D50 of 5 nM. ARCC-4 is an enzalutamide-based von Hippel-Lindau (VHL)-recruiting AR PROTAC. ARCC-4 effectively degrades AR mutations relevant to antiandrogen studies.
Biological Activity I Assay Protocols (From Reference)
ln Vitro
The three-promoted polymer complex binds more readily when ARCC-4 improves the protein-protein reaction between AR and VHL [1]. AR can be efficiently degraded by -4 (0.1-10,000 nM; 20 hours), with a D50 of 5 nM and a Dmax of greater than 95% [1]. Molds with ARCC-4 (100 nM; 12 hours) exhibit AR. ARCC-4 does not impede PR-A or PR-B, but it nearly solely modulates AR through chromoplast pigments [1]. Clinically significant AR mutations are effectively suppressed by ARCC-4 [1]. ARCC-4 is still functional in the presence of high androgen levels [1].
Cell Assay
Western Blot Analysis[1]
Cell Types: VCaP cells
Tested Concentrations: 0.1 nM, 1 nM, 10 nM, 50 nM, 100 nM, 0.5μM, 1μM. , 10 μM
Incubation Duration: 20 hrs (hours)
Experimental Results: Effective degradation of AR
References

[1]. Androgen receptor degradation by the proteolysis-targeting chimera ARCC-4 outperforms enzalutamide in cellular models of prostate cancer drug resistance. Commun Biol. 2018 Aug 2;1:100.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C53H58F3N7O8S2
Molecular Weight
1042.19494104385
Exact Mass
1023.363
CAS #
1973403-00-7
Related CAS #
1973403-00-7;ARCC-4 hydrate;
PubChem CID
122428515
Appearance
White to off-white solid powder
LogP
8.5
Hydrogen Bond Donor Count
3
Hydrogen Bond Acceptor Count
14
Rotatable Bond Count
18
Heavy Atom Count
72
Complexity
1940
Defined Atom Stereocenter Count
3
SMILES
S=C1N(C2C=CC(C#N)=C(C(F)(F)F)C=2)C(C(C)(C)N1C1C=CC(C2C=CC(=CC=2)OCCCCOCC(N[C@H](C(N2C[C@@H](C[C@H]2C(NCC2C=CC(C3=C(C)N=CS3)=CC=2)=O)O)=O)C(C)(C)C)=O)=CC=1)=O.O
InChi Key
DUPAJELXESPTNF-PPZGWQTASA-N
InChi Code
InChI=1S/C53H56F3N7O7S2/c1-32-45(72-31-59-32)36-11-9-33(10-12-36)28-58-47(66)43-26-40(64)29-61(43)48(67)46(51(2,3)4)60-44(65)30-69-23-7-8-24-70-41-21-16-35(17-22-41)34-13-18-38(19-14-34)63-50(71)62(49(68)52(63,5)6)39-20-15-37(27-57)42(25-39)53(54,55)56/h9-22,25,31,40,43,46,64H,7-8,23-24,26,28-30H2,1-6H3,(H,58,66)(H,60,65)/t40-,43+,46-/m1/s1
Chemical Name
(2S,4R)-1-[(2S)-2-[[2-[4-[4-[4-[3-[4-cyano-3-(trifluoromethyl)phenyl]-5,5-dimethyl-4-oxo-2-sulfanylideneimidazolidin-1-yl]phenyl]phenoxy]butoxy]acetyl]amino]-3,3-dimethylbutanoyl]-4-hydroxy-N-[[4-(4-methyl-1,3-thiazol-5-yl)phenyl]methyl]pyrrolidine-2-carboxamide
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO : ~200 mg/mL (~195.28 mM)
Solubility (In Vivo)
Solubility in Formulation 1: 5 mg/mL (4.88 mM) in 10% DMSO + 40% PEG300 + 5% Tween80 + 45% Saline (add these co-solvents sequentially from left to right, and one by one), suspension solution; with sonication.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 400 μL PEG300 and mix evenly; then add 50 μL Tween-80 to the above solution and mix evenly; then add 450 μL normal saline to adjust the volume to 1 mL.
Preparation of saline: Dissolve 0.9 g of sodium chloride in 100 mL ddH₂ O to obtain a clear solution.

Solubility in Formulation 2: 5 mg/mL (4.88 mM) in 10% DMSO + 90% (20% SBE-β-CD in Saline) (add these co-solvents sequentially from left to right, and one by one), suspension solution; with ultrasonication.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 900 μL of 20% SBE-β-CD physiological saline solution and mix evenly.
Preparation of 20% SBE-β-CD in Saline (4°C,1 week): Dissolve 2 g SBE-β-CD in 10 mL saline to obtain a clear solution.

View More

Solubility in Formulation 3: ≥ 5 mg/mL (4.88 mM) (saturation unknown) in 10% DMSO + 90% Corn Oil (add these co-solvents sequentially from left to right, and one by one), clear solution.
For example, if 1 mL of working solution is to be prepared, you can add 100 μL of 50.0 mg/mL clear DMSO stock solution to 900 μL of corn oil and mix evenly.


 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 0.9595 mL 4.7975 mL 9.5951 mL
5 mM 0.1919 mL 0.9595 mL 1.9190 mL
10 mM 0.0960 mL 0.4798 mL 0.9595 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Biological Data

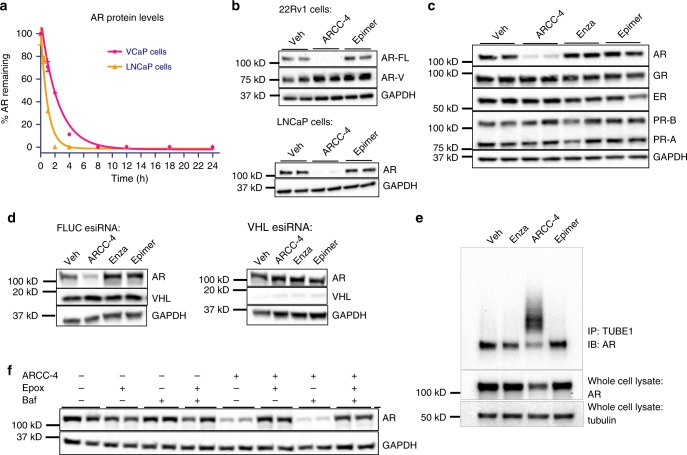

  • PROTAC ARCC-4 potently degrades AR in prostate cancer cells. a Time course serum-free treatment of VCaP and LNCaP cells with 100 nM of ARCC-4 shows over 90% AR depletion by 6 h as measured by quantified western blot. AR levels were normalized to tubulin as a loading control. See Supplementary Figures 2, 3 for western blot images. Experiment was performed in duplicate. The data represent mean values ± SEM and the plot represents two independent experiments (n = 2). b Treatment of 22Rv1 and LNCaP cells for 24 h with vehicle (Veh), ARCC-4 or epimer (100 nM) in charcoal-stripped serum (CSS) media shows AR depletion as measured by western blot. AR-FL: full length AR; AR-V: splice variants of AR. Experiments were performed in biological duplicates and the plot represents two independent experiments (n = 2). See Supplementary Figure 8 for full blot images. c Treatment of T47D breast cancer cells for 24 h with 50 nM enzalutamide (Enza) or ARCC-4 shows no loss of glucocorticoid, estrogen, and progesterone receptors. The western blot shows biological replicates and represents two independent experiments (n = 2). See Supplementary Figure 8 for full blot images. d Transfection of VCaP cells with endo-ribonuclease prepared siRNA (esiRNA) targeting Firefly Luciferase (FLUC) as a negative control, or VHL shows a loss of ARCC-4 mediated AR degradation upon VHL knockdown. VCaP cells were treated with 100 nM of the indicated compounds for 12 h after 48 h post-transfection. Data represents two independent experiments. See Supplementary Figure 9 for full blot images. e Tandem Ubiquitin Binding Elements (TUBE1) pull-down assay in VCaP cells shows enrichment of polyubiquitin chains on AR upon a 2.5-hour treatment with 1 µM ARCC-4. This polyubiquitination of AR is not seen with the other compounds tested. Data represents two independent experiments. See Supplementary Figure 9 for full blot images. f ARCC-4-mediated AR degradation (1 µM) at 4 h is blocked by 1-h pretreatment with proteasome inhibitor epoxomicin (Epox, 2 µM) and is unaffected by 1-h pretreatment with lysosomal inhibitor bafilomycin (Baf, 100 nM). The western blot shows biological replicates and represents two independent experiments (n = 2). See Supplementary Figure 9 for full blot images.[1].Androgen receptor degradation by the proteolysis-targeting chimera ARCC-4 outperforms enzalutamide in cellular models of prostate cancer drug resistance. Commun Biol. 2018 Aug 2;1:100.

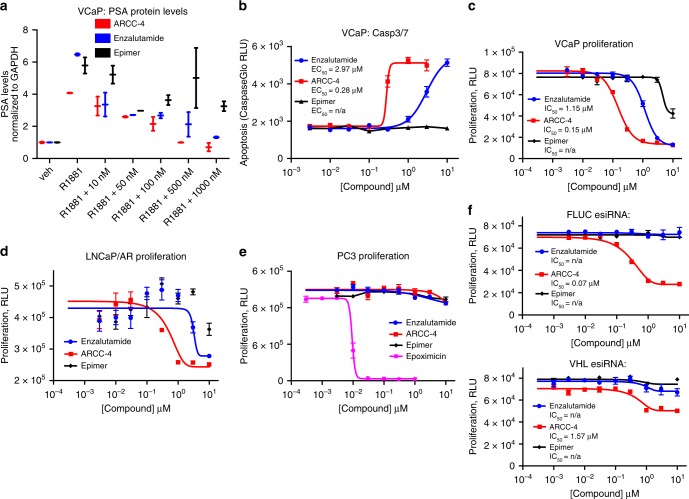

  • ARCC-4 is better than enzalutamide in inducing apoptosis and inhibiting AR signaling in prostate cancer cells overexpressing AR. a Pretreatment of VCaP cells with ARCC-4, enzalutamide or epimer for 8 h in charcoal-stripped serum (CSS) media followed by a 48-h stimulation with 0.2 nM R1881 shows blockage of PSA upregulation as measured by western blot. Experiments were performed in duplicate. The results are representative of two independent experiments (n = 2). b Treatment of VCaP cells for 48 h with enzalutamide, ARCC-4, or epimer leads to varying apoptosis induction as measured by caspase-3 and caspase-7 activation. Experiments were performed in triplicate and the plot is representative of two independent experiments (n = 2). c, d Treatment of CRPC cells (VCaP or LNCaP/AR) with enzalutamide, ARCC-4, or epimer for 6 days demonstrates antiproliferative effects. Experiments were performed in triplicate and the plot is representative of two independent experiments (n = 2). [1].Androgen receptor degradation by the proteolysis-targeting chimera ARCC-4 outperforms enzalutamide in cellular models of prostate cancer drug resistance. Commun Biol. 2018 Aug 2;1:100.

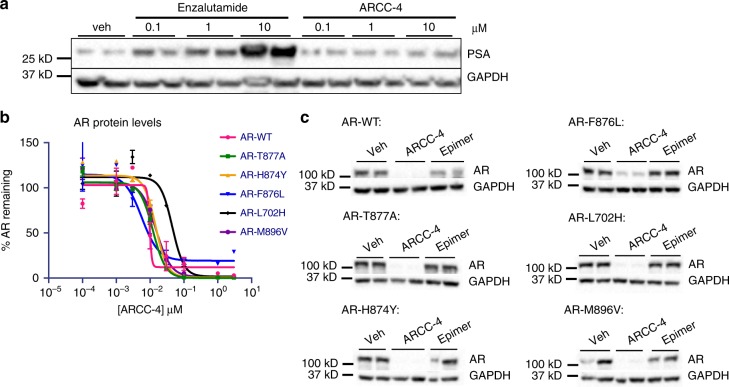

  • ARCC-4 shows efficacy against clinically relevant AR mutations. a Treatment of LNCaP/F876L AR cells with indicated concentrations of enzalutamide or ARCC-4 for 48 h shows a greater increase in PSA levels with enzalutamide as measured by western blot. Results are representative of two independent experiments (n = 2). veh refers to vehicle-treated samples. See Supplementary Figure 10 for full blot images. b Treatment of HEK293T cells overexpressing wild-type (WT) or different AR mutants for 20 h (after 50 ng per ml doxycycline induction) with ARCC-4 in charcoal-stripped serum (CSS) media shows AR depletion of WT and all mutants tested as measured by quantified western blot. AR levels were normalized to GAPDH as a loading control. See Supplementary Figure 6 for western blot images. Experiments were performed in duplicate and the plot is representative of two independent experiments (n = 2). c AR degradation in HEK293T cells overexpressing WT or different AR mutants treated for 20 h (after 50 ng per ml doxycycline induction) with vehicle, ARCC-4, or epimer (500 nM) in CSS media. Experiment was performed in biological duplicates (n = 1). See Supplementary Figure 10 for full blot images. All data represent mean values ± SEM.[1].Androgen receptor degradation by the proteolysis-targeting chimera ARCC-4 outperforms enzalutamide in cellular models of prostate cancer drug resistance. Commun Biol. 2018 Aug 2;1:100.
