Alectinib (AF-802, CH-5424802, RO-5424802, Alecensa)

Alias: Alectinib; CH5424802; CH 5424802; RO 5424802; AF802; CH-5424802; RO5424802; AF 802; AF-802; RO-5424802; brand name: Alecensa
Cat No.:V0606 Purity: ≥98%
Alectinib (formerly AF802, CH5424802, RO5424802; trade name Alecensa) is a potent, selective, and orally bioavailable ALK (anaplastic lymphoma kinase) tyrosine kinase inhibitor with potential antitumor activity.
Alectinib (AF-802, CH-5424802, RO-5424802, Alecensa) Chemical Structure CAS No.: 1256580-46-7
Product category: ALK
This product is for research use only, not for human use. We do not sell to patients.
Size Price Stock Qty
10mg
50mg
100mg
250mg
500mg
Other Sizes

Other Forms of Alectinib (AF-802, CH-5424802, RO-5424802, Alecensa):

  • Alectinib HCl (ALECENSA, AF-802, CH-5424802, RO-5424802)
  • Alectinib-d8 (CH5424802-d8; RO5424802-d8; AF802-d8)
  • Alectinib-d6
Official Supplier of:
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Alternate Text
Top Publications Citing lnvivochem Products
Product Description

Alectinib (formerly AF802, CH5424802, RO5424802; trade name Alecensa) is a potent, selective, and orally bioavailable ALK (anaplastic lymphoma kinase) tyrosine kinase inhibitor with potential antitumor activity. In cell-free assays, it inhibits ALK with an IC50 value of 1.9 nM. The Food and Drug Administration (FDA) authorized alelectinib in 2017 for the management of patients with non-small cell lung cancer (NSCLC) that was positive for ALK.

Biological Activity I Assay Protocols (From Reference)
Targets
ALK (IC50 = 1.9 nM); ALKF1174L (IC50 = 1 nM); ALKR1275Q (IC50 = 3.5 nM); ALK (Kd = 2.4 nM)
ln Vitro
Alectinib (0-1000 nM; 2 hours; NCI-H2228 cells) treatment was able to prevent autophosphorylation of ALK and significantly suppress phosphorylation of STAT3 and AKT, in NCI-H2228 cells expressing EML4-ALK[1].
Alectinib (0-1000 nM; 5 days; HCC827, A549, or NCIH522 cells) treatment reduces cell activity in a dose-dependent manner[1].
ln Vivo
Alectinib (0.2-20 mg/kg; oral administration; once daily; for 11 days; SCID or nude mice bearing NCI-H2228 cells), tumor regression and dose-dependent inhibition of tumor growth (EC50 of 0.46 mg/kg) are possible outcomes of treatment. There are no noticeable toxicity symptoms or variations in body weight at any dosage level[1].
Enzyme Assay
Through the use of time-resolved fluorescence resonance energy transfer (TR-FRET) assay or fluorescence polarization (FP) assay, the inhibitory ability against each kinase—apart from MEK1 and Raf-1—is assessed by looking at their capacity to phosphorylate different substrate peptides in the presence of CH542480. The phosphorylation of a substrate peptide by a recombinant ERK2 protein in the presence of CH5424802 is quantitatively analyzed to determine the inhibitory activity against MEK1. When CH5424802 is present, the kinases' capacity to phosphorylate MEK1 is used to gauge their inhibitory activity against Raf-1.
Cell Assay
In 96-well plates, cells such as NSCLC, A549, and HCC827 are seeded overnight and then incubated with different concentrations of CH5424802 for the specified amount of time. In the spheroid cell growth inhibition assay, the compound is added to cells that have been seeded on spheroid plates, incubated for a full night, and then treated for the designated durations. The Luminescent Cell Viability Assay is used to determine the number of viable cells. The Caspase-Glo 3/7 Assay Kit is used to evaluate the Caspase-3/7 assay.
Animal Protocol
SCID or nude mice bearing NCI-H2228
20 mg/kg
Oral administration
References

[1]. CH5424802, a selective ALK inhibitor capable of blocking the resistant gatekeeper mutant. Cancer Cell. 2011, 19(5), 679-690.

[2]. Alectinib versus crizotinib in treatment-naive anaplastic lymphoma kinase-positive (ALK+) non-small-cell lung cancer: CNS efficacy results from the ALEX study. Ann Oncol. 2018 Nov 1;29(11):2214-2222.

These protocols are for reference only. InvivoChem does not independently validate these methods.
Physicochemical Properties
Molecular Formula
C30H34N4O2
Molecular Weight
482.62
Exact Mass
482.27
Elemental Analysis
C, 74.66; H, 7.10; N, 11.61; O, 6.63
CAS #
1256580-46-7
Related CAS #
Alectinib Hydrochloride;1256589-74-8;Alectinib-d8;1256585-15-5;Alectinib-d6;1616374-19-6
Appearance
White to off-white solidw powder
SMILES
CCC1=CC2=C(C=C1N3CCC(CC3)N4CCOCC4)C(C5=C(C2=O)C6=C(N5)C=C(C=C6)C#N)(C)C
InChi Key
KDGFLJKFZUIJMX-UHFFFAOYSA-N
InChi Code
InChI=1S/C30H34N4O2/c1-4-20-16-23-24(17-26(20)34-9-7-21(8-10-34)33-11-13-36-14-12-33)30(2,3)29-27(28(23)35)22-6-5-19(18-31)15-25(22)32-29/h5-6,15-17,21,32H,4,7-14H2,1-3H3
Chemical Name
9-ethyl-6,6-dimethyl-8-(4-morpholin-4-ylpiperidin-1-yl)-11-oxo-5H-benzo[b]carbazole-3-carbonitrile
Synonyms
Alectinib; CH5424802; CH 5424802; RO 5424802; AF802; CH-5424802; RO5424802; AF 802; AF-802; RO-5424802; brand name: Alecensa
HS Tariff Code
2934.99.9001
Storage

Powder      -20°C    3 years

                     4°C     2 years

In solvent   -80°C    6 months

                  -20°C    1 month

Shipping Condition
Room temperature (This product is stable at ambient temperature for a few days during ordinary shipping and time spent in Customs)
Solubility Data
Solubility (In Vitro)
DMSO: ~0.5 mg/mL (~1.0 mM)
Water: <1 mg/mL
Ethanol: <1 mg/mL
Solubility (In Vivo)
30% PEG400+0.5% Tween80+5% propylene glycol: 30mg/mL
 (Please use freshly prepared in vivo formulations for optimal results.)
Preparing Stock Solutions 1 mg 5 mg 10 mg
1 mM 2.0720 mL 10.3601 mL 20.7202 mL
5 mM 0.4144 mL 2.0720 mL 4.1440 mL
10 mM 0.2072 mL 1.0360 mL 2.0720 mL

*Note: Please select an appropriate solvent for the preparation of stock solution based on your experiment needs. For most products, DMSO can be used for preparing stock solutions (e.g. 5 mM, 10 mM, or 20 mM concentration); some products with high aqueous solubility may be dissolved in water directly. Solubility information is available at the above Solubility Data section. Once the stock solution is prepared, aliquot it to routine usage volumes and store at -20°C or -80°C. Avoid repeated freeze and thaw cycles.

Calculator

Molarity Calculator allows you to calculate the mass, volume, and/or concentration required for a solution, as detailed below:

  • Calculate the Mass of a compound required to prepare a solution of known volume and concentration
  • Calculate the Volume of solution required to dissolve a compound of known mass to a desired concentration
  • Calculate the Concentration of a solution resulting from a known mass of compound in a specific volume
An example of molarity calculation using the molarity calculator is shown below:
What is the mass of compound required to make a 10 mM stock solution in 5 ml of DMSO given that the molecular weight of the compound is 350.26 g/mol?
  • Enter 350.26 in the Molecular Weight (MW) box
  • Enter 10 in the Concentration box and choose the correct unit (mM)
  • Enter 5 in the Volume box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 17.513 mg appears in the Mass box. In a similar way, you may calculate the volume and concentration.

Dilution Calculator allows you to calculate how to dilute a stock solution of known concentrations. For example, you may Enter C1, C2 & V2 to calculate V1, as detailed below:

What volume of a given 10 mM stock solution is required to make 25 ml of a 25 μM solution?
Using the equation C1V1 = C2V2, where C1=10 mM, C2=25 μM, V2=25 ml and V1 is the unknown:
  • Enter 10 into the Concentration (Start) box and choose the correct unit (mM)
  • Enter 25 into the Concentration (End) box and select the correct unit (mM)
  • Enter 25 into the Volume (End) box and choose the correct unit (mL)
  • Click the “Calculate” button
  • The answer of 62.5 μL (0.1 ml) appears in the Volume (Start) box
g/mol

Molecular Weight Calculator allows you to calculate the molar mass and elemental composition of a compound, as detailed below:

Note: Chemical formula is case sensitive: C12H18N3O4  c12h18n3o4
Instructions to calculate molar mass (molecular weight) of a chemical compound:
  • To calculate molar mass of a chemical compound, please enter the chemical/molecular formula and click the “Calculate’ button.
Definitions of molecular mass, molecular weight, molar mass and molar weight:
  • Molecular mass (or molecular weight) is the mass of one molecule of a substance and is expressed in the unified atomic mass units (u). (1 u is equal to 1/12 the mass of one atom of carbon-12)
  • Molar mass (molar weight) is the mass of one mole of a substance and is expressed in g/mol.
/

Reconstitution Calculator allows you to calculate the volume of solvent required to reconstitute your vial.

  • Enter the mass of the reagent and the desired reconstitution concentration as well as the correct units
  • Click the “Calculate” button
  • The answer appears in the Volume (to add to vial) box
In vivo Formulation Calculator (Clear solution)
Step 1: Enter information below (Recommended: An additional animal to make allowance for loss during the experiment)
Step 2: Enter in vivo formulation (This is only a calculator, not the exact formulation for a specific product. Please contact us first if there is no in vivo formulation in the solubility section.)
+
+
+

Calculation results

Working concentration mg/mL;

Method for preparing DMSO stock solution mg drug pre-dissolved in μL DMSO (stock solution concentration mg/mL). Please contact us first if the concentration exceeds the DMSO solubility of the batch of drug.

Method for preparing in vivo formulation:Take μL DMSO stock solution, next add μL PEG300, mix and clarify, next addμL Tween 80, mix and clarify, next add μL ddH2O,mix and clarify.

(1) Please be sure that the solution is clear before the addition of next solvent. Dissolution methods like vortex, ultrasound or warming and heat may be used to aid dissolving.
             (2) Be sure to add the solvent(s) in order.

Clinical Trial Information
NCT Number Recruitment interventions Conditions Sponsor/Collaborators Start Date Phases
NCT02075840 Active
Recruiting
Drug: Alectinib
Drug: Crizotinib
Non-Small Cell Lung Cancer Hoffmann-La Roche August 19, 2014 Phase 3
NCT03596866 Active
Recruiting
Drug: Brigatinib
Drug: Alectinib
ALK+ Advanced NSCLC Takeda April 19, 2019 Phase 3
NCT03202940 Recruiting Drug: Alectinib
Drug: Cobimetinib
Non-small Cell Lung Cancer Massachusetts General Hospital September 14, 2017 Phase 1
Phase 2
NCT05770037 Recruiting Drug: Alectinib Solid Tumor
Cancer
Cancer Research UK August 17, 2022 Phase 2
Phase 3
NCT05525338 Recruiting Drug: Alectinib Drug Monitoring
Lung Cancer
University Medical Center
Groningen
March 23, 2022 Phase 4
Biological Data
  • Alectinib (CH5424802)

    The structure and cytotoxicity of alectinib.. 2017 Mar; 49(3): e303.

  • Alectinib (CH5424802)

    Potentiation of the anticancer effects of paclitaxel by alectinib in the KBv200 cell xenograft nude mice model. The tumor growth curve was drawn to monitor the tumor volume with time after implantation. The data shown are expressed as the mean±s.d. of the tumor volume for each group (n=9) (a).. 2017 Mar; 49(3): e303.

  • Alectinib (CH5424802)

    Effect of alectinib on the intracellular accumulations of DOX and Rho 123 in MDR cells and in their parental sensitive cells.. 2017 Mar; 49(3): e303.

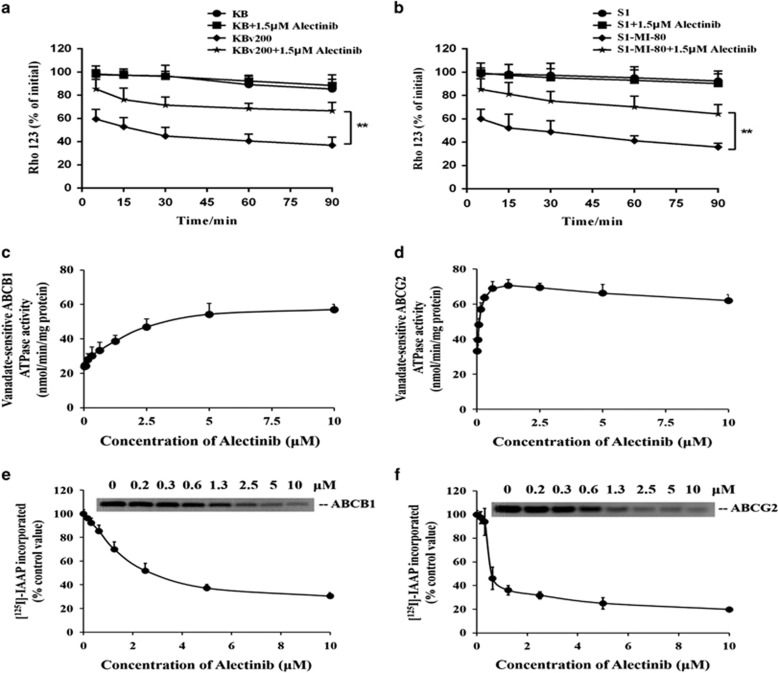

  • Alectinib (CH5424802)

    Effect of alectinib on the efflux of Rho 123, ATPase activity and the [125I]-IAAP photoaffinity labeling of ABCB1 and ABCG2.. 2017 Mar; 49(3): e303.

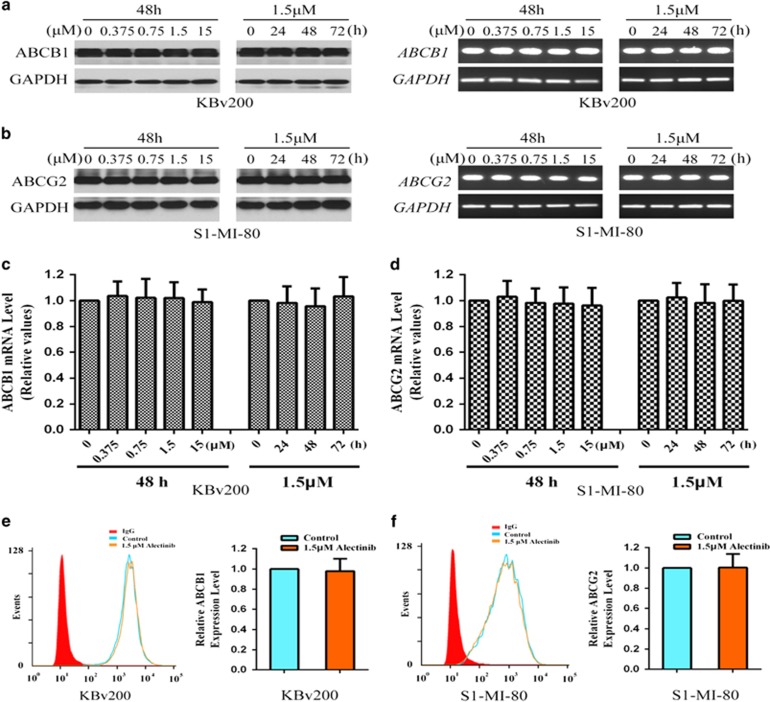

  • Alectinib (CH5424802)

    Effect of alectinib on the expression levels of ABCB1 or ABCG2 in MDR cells.. 2017 Mar; 49(3): e303.

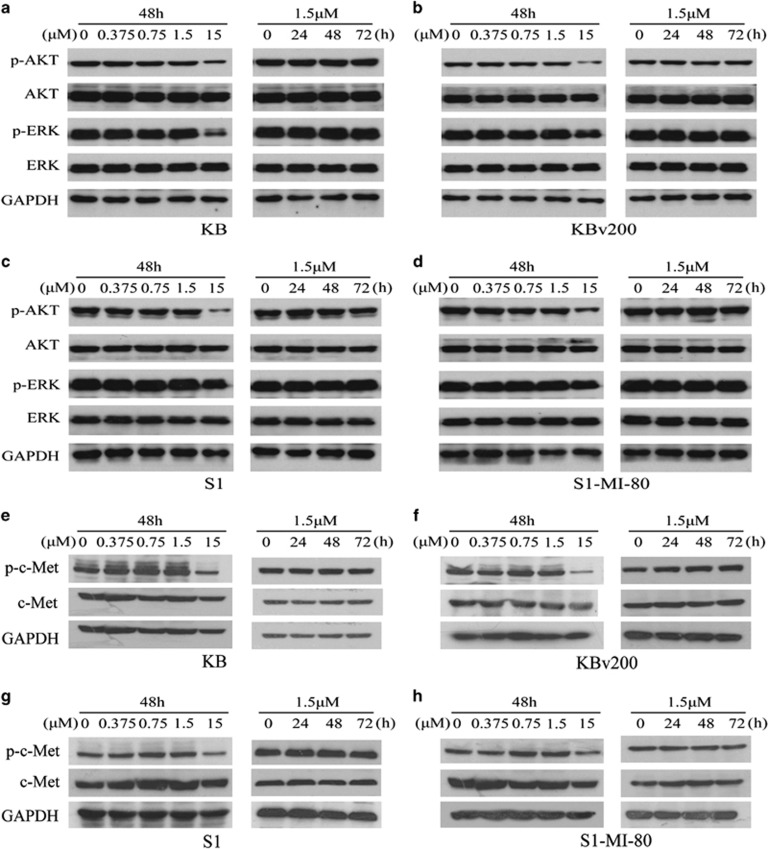

  • Alectinib (CH5424802)

    Effect of alectinib on the inhibition of AKT, ERK and c-Met phosphorylation.. 2017 Mar; 49(3): e303.

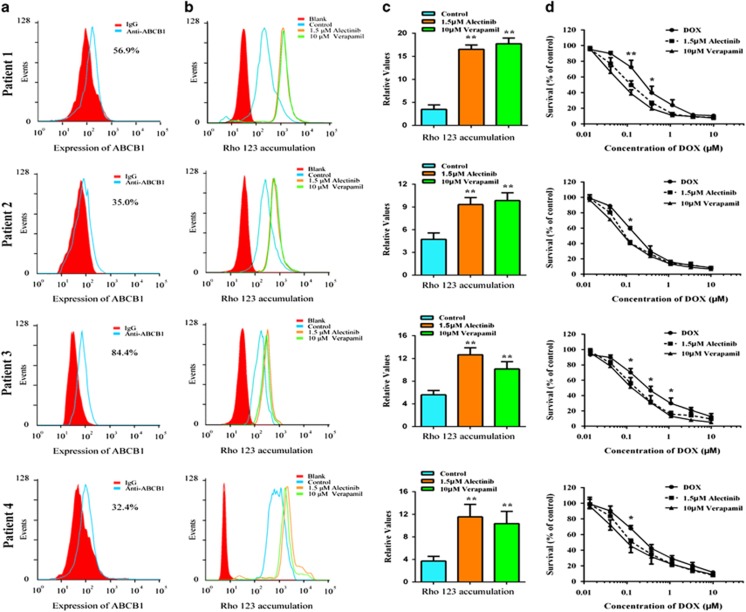

  • Alectinib (CH5424802)

    Alectinib increased the accumulation of Rho 123 and enhanced the cytotoxicity of DOX in ABCB1-overexpressing primary leukemia blasts.. 2017 Mar; 49(3): e303.

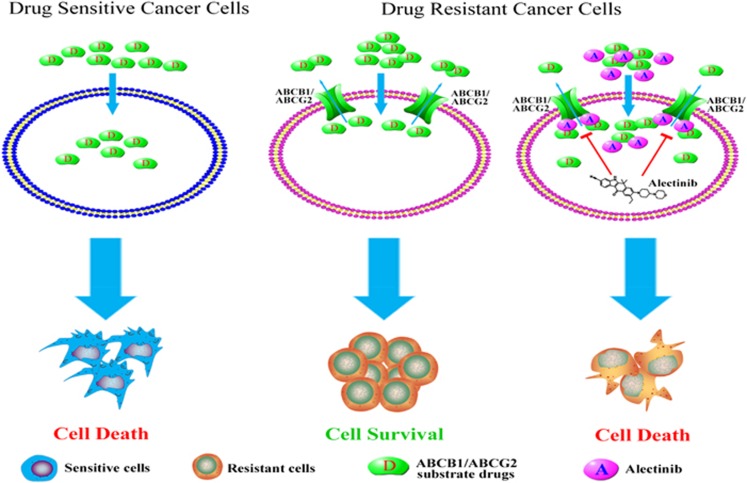

  • Alectinib (CH5424802)

    A schematic model illustrating the reversal of MDR by alectinib.. 2017 Mar; 49(3): e303.
